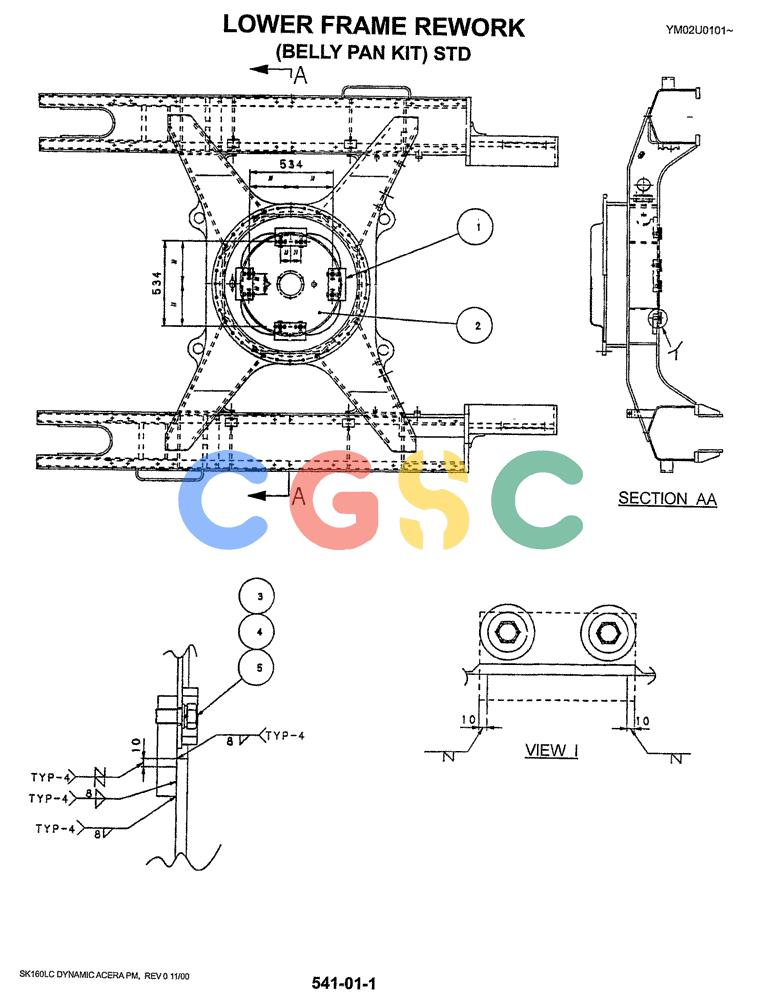

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (05-007) - LOWER FRAME REWORK (BELLY PAN KIT) STD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
150 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2422N926 | [1] | REPAIR KIT | KOBFRAME REWORK, LOWER Superseded by part number: 2416T18837, ZS18C18040, ZW22K18000, ZW11X18000, 2414T2929 |
| 1. | 2416T18837 | [4] | BLOCK | KOBTAPPED |
| 2. | 2414T2929 | [1] | COVER | KOBSize 634x634xTh 0.6mm Corner radius 197mm |
| 3. | ZS13C18040 | [8] | BOLT | KOBM18x2.0x40mm |
| 4. | ZW22K18000 | [8] | LOCK WASHER | KOBID 18 x OD 26 x Th 3.5mm |
| 5. | ZW11X18000 | [8] | WASHER | KOBID 18 x OD 34 x Th 3.2mm |
