神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-014) - POWER TAKE-OFF ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
518 次

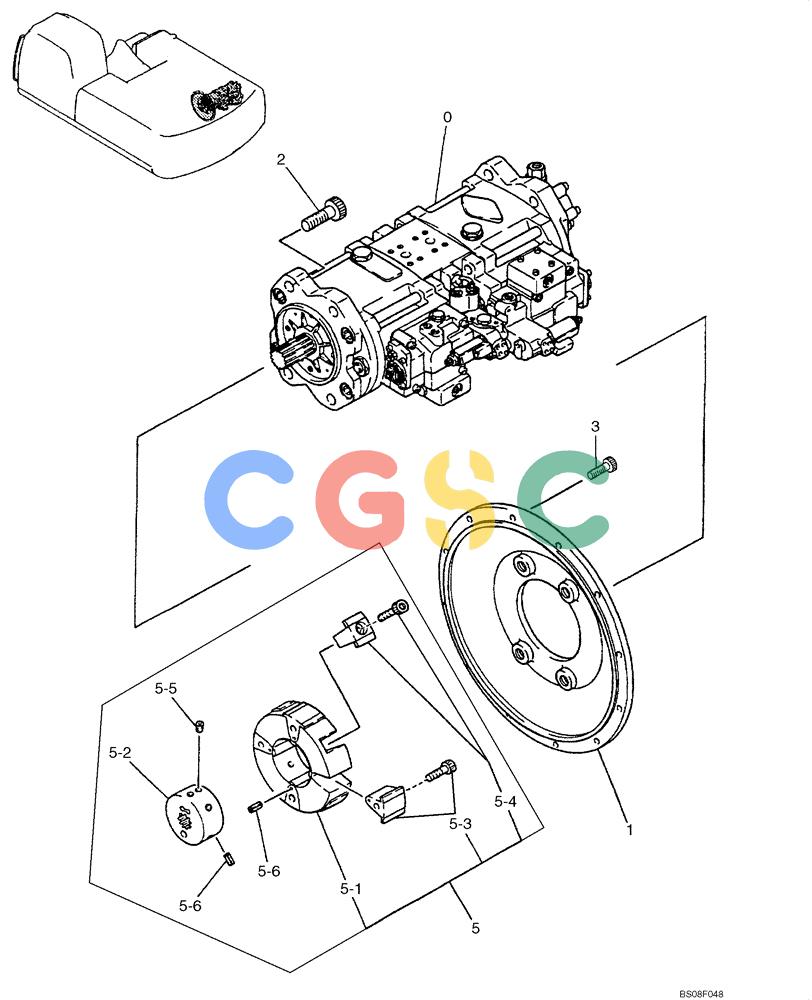

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YM10V00001F1 | [1] | PUMP | KOBSee Figure 08-011 Superseded by part number: YM10V00001F2 |
| 1. | YM30P01003P1 | [1] | BRACKET | KOBMounting |
| 2. | ZS23C16045 | [4] | CAP,Hex Socket Head, M16 x 45mm | KOBScrew -- M16x2.0x45mm |
| 3. | ZS18C10025 | [12] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm -- Replaces ZS18C10028, M10x1.50x28mm |
| 5. | YM30P01001F1 | [1] | COUPLING | KOBIncls. Refs. 5-1 - 5-6 |
| 5-1. | 2418U224S7 | [1] | RUBBER INSULATOR | KOB Superseded by part number: YB30P01001S001 |
| 5-2. | YM01P01001P1 | [1] | Hub | |
| 5-3. | 2418U162S2 | [4] | BOLT | KOBM16x2.0x16mm Long |
| 5-4. | 2418U128S5 | [4] | SCREW | KOBScrew, Cap -- M16x2.0x50mm Long Superseded by part number: LQ30P01003S005 |
| 5-5. | 2418U162S3 | [2] | SCREW | KOBSet -- M16x2.0x28mm Long |
| 5-6. | ZP26D05010 | [8] | PIN | KOBRoll -- OD 05 x 10mm Long |
