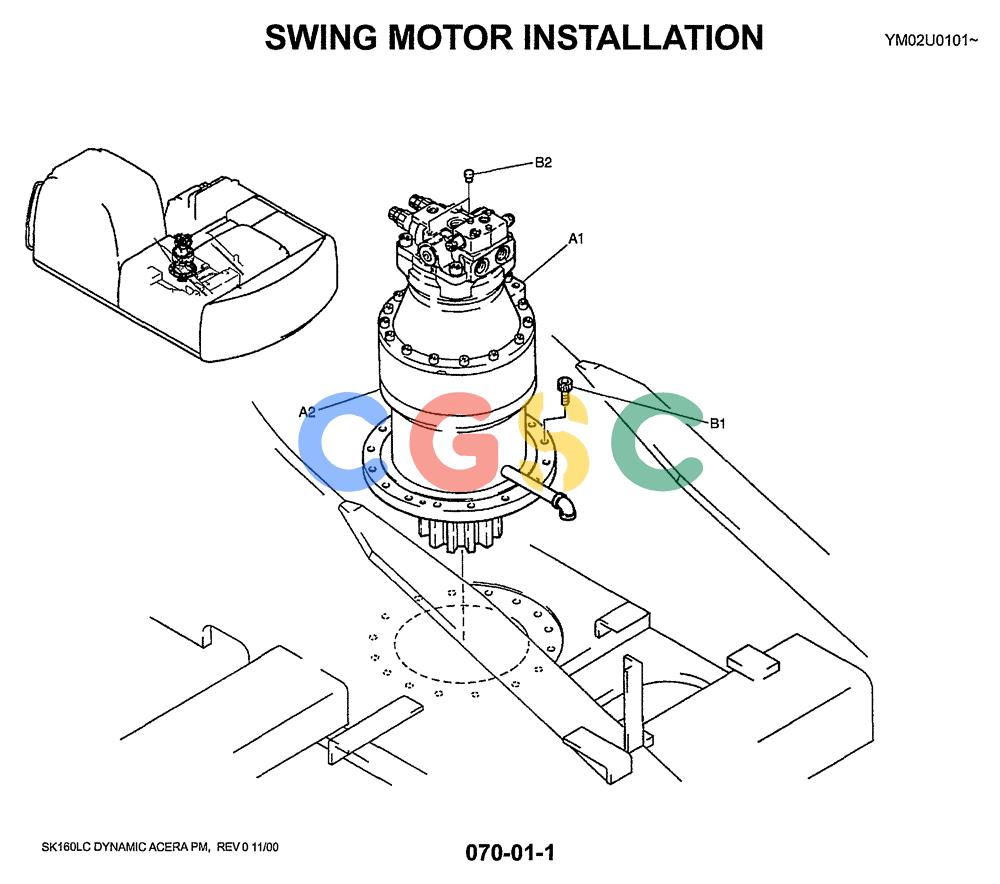

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-015) - SWING MOTOR INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
218 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM15V00002F1 | [1] | HYDRAULIC MOTOR | KOBMOTOR & REDUCTION UNIT |
| A1. | YN15V00002F4 | [1] | HYDRAULIC MOTOR | KOBASSY Superseded by part number: YN15V00025F4 |
| A2. | YM32W00001F1 | [1] | REDUCER | KOBASSY, See P. 071-01-1 |
| . . | YM32W00002F1 | [1] | HYDRAULIC MOTOR | KOBINSTALL, SWING |
| B1. | ZS13C20055 | [12] | SCREW | KOBScrew -- M20x2.50x55mm |
| B2. | PV02B01073D3 | [1] | CAP | KOB10.7mm Plastic Superseded by part number: YN64H01391D1 |
