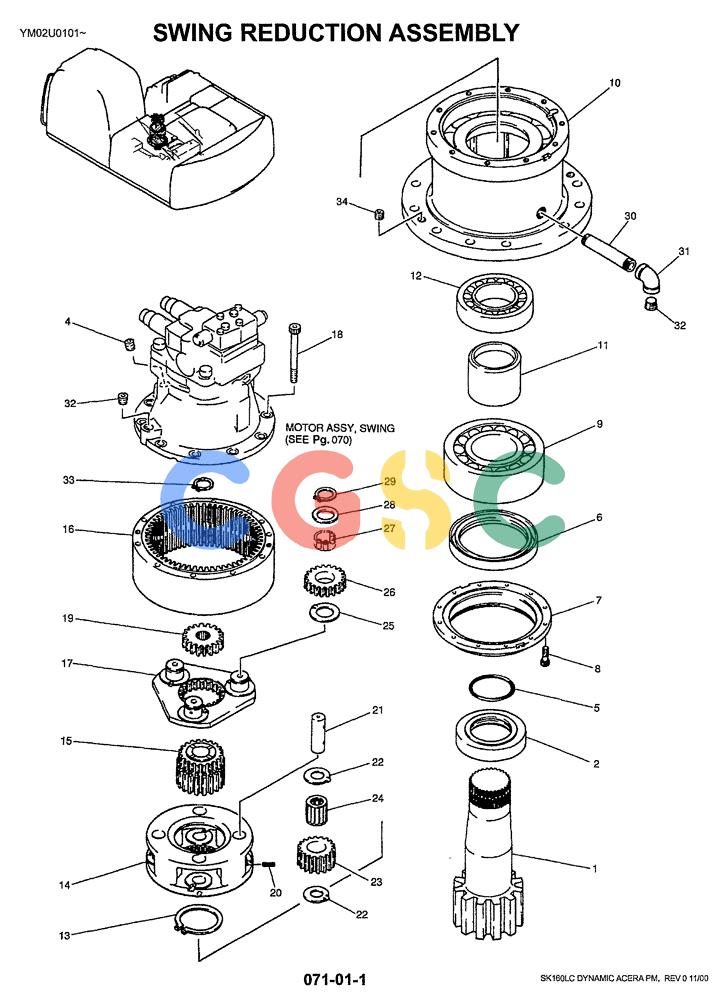

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-016) - SWING REDUCTION ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
490 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM32W00001F1 | [1] | REDUCER | KOBREDUCTION ASSY, SWING |
| 1. | YM32W01001P1 | [1] | SHAFT | KOBPINION |
| 2. | YN32W01004P1 | [1] | SLEEVE | KOB |
| 4. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 5. | ZD11G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOB |
| 6. | YN32W01034P1 | [1] | OIL SEAL | KOB |
| 7. | YN32W01005P1 | [1] | RETAINER | KOB |
| 8. | ZS23C08025 | [12] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 9. | YN32W01029P1 | [1] | SPHERICAL BEARING | KOBSPHERICAL Superseded by part number: R25P0047D9 |
| 10. | YN32W01033P1 | [1] | HOUSING | KOB |
| 11. | YN32W01015P1 | [1] | SPACER | KOB |
| 12. | YN32W01030P1 | [1] | SPHERICAL BEARING | KOBSPHERICAL Superseded by part number: 25Z804D18 |
| 13. | ZR16X09000 | [1] | RING | KOBRetaining -- ID 84.50 x OD 108 x 3.0mm |
| 14. | YN32W01011P1 | [1] | SPIDER | KOB |
| 15. | YN32W01006P1 | [1] | SUN GEAR | KOB |
| 16. | YN32W01012P1 | [1] | RING GEAR | KOB |
| 17. | YN32W01019F1 | [1] | SPIDER ASSY. | KOB |
| 18. | ZS23C14130 | [10] | CAPSCREW,Hex Socket Head, M14 x 130mm | KOBSCREW M14x2.0x130mm |
| 19. | YN32W01007P1 | [1] | SUN GEAR | KOB |
| 20. | ZP26D08025 | [4] | PIN | KOBRoll -- OD 08 x 25mm Long |
| 21. | YN32W01001P1 | [4] | SHAFT | KOBRETAINER |
| 22. | YN32W01027P1 | [8] | THRUST WASHER | KOB |
| 23. | YN32W01008P1 | [4] | PINION | KOB |
| 24. | YN32W01021P1 | [4] | BEARING | KOBNEEDLE |
| 25. | YN32W01026P1 | [3] | THRUST WASHER | KOB |
| 26. | YN32W01002P1 | [3] | PINION | KOB |
| 27. | YN32W01022P1 | [102] | ROLLER | KOB |
| 28. | YN32W01028P1 | [3] | THRUST WASHER | KOB |
| 29. | 2418R2D25 | [3] | RING | KOBSNAP Superseded by part number: ZR16X04000 |
| 30. | 2420T6698D2 | [1] | PIPE | KOB |
| 31. | ZG31U12000 | [1] | ELBOW | KOB |
| 32. | ZE82T12000 | [2] | PLUG | KOB3/4" PT |
| 33. | 2418R2D22 | [1] | RING | KOBSNAP Superseded by part number: ZR16X03500 |
| 34. | ZS83C20020 | [2] | SCREW | KOBSet -- M20x2.50x20mm |
