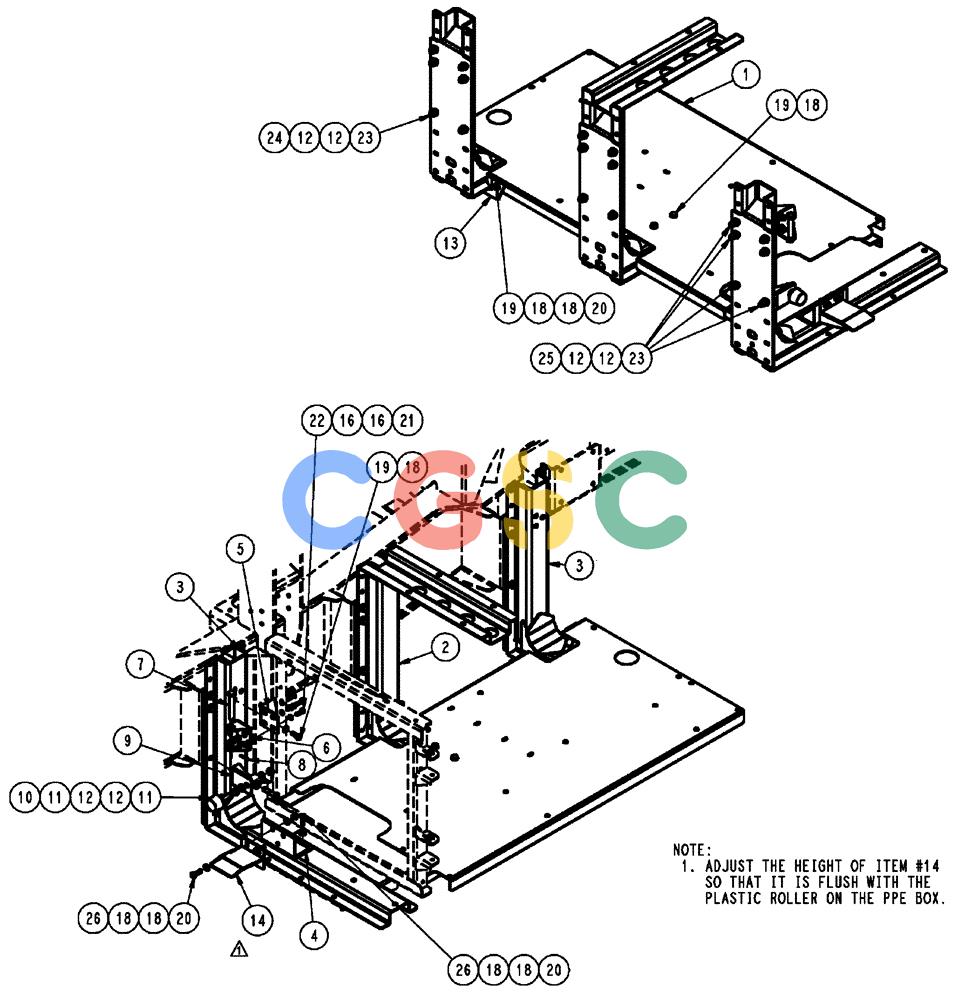

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (04-012) - TANK/WALKWAY GROUP, RS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
294 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87266126
|
[1] |
LOAD DECK
|
BN
Lower
|
| 2. |
344179A1
|
[1] |
MOUNTING PLATE
|
BN
walkway
|
| 3. |
87265534
|
[2] |
MOUNTING PLATE
|
BN
Walkway
|
| 4. |
87265532
|
[1] |
MOUNTING PLATE
|
BN
Lower Striker
|
| 5. |
87266143
|
[1] |
MOUNT
|
BN
Latch
|
| 6. |
87266140
|
[1] |
SUPPORT
|
BN
Mount, Pin
|
| 7. |
728-16100
|
[1] |
CLEVIS PIN,M16 x 100
|
CAS
Superseded by part number: 84078725
|
| 8. |
BN1630425
|
[1] |
PIN, SPLIT (COTTER)
|
BN
PIN, COTTER 1/8 X 1
|
| 9. |
87266675
|
[1] |
MOUNTING PLATE
|
BN
Bumper
|
| 10. |
342650A1
|
[1] |
BUMPER
|
BN
Rubber
|
| 11. |
280431
|
[2] |
NUT,1/2"-13, G5
|
NH
|
| 12. |
86625255
|
[38] |
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
|
GI
|
| 13. |
87266684
|
[1] |
BRACKET, SUPPORTING
|
BN
Mount, Lower Tank
|
| 14. |
87265421
|
[1] |
SUPPORT
|
BN
Mount, PPE
|
| 16. |
86624184
|
[8] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 18. |
86625252
|
[21] |
WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk
|
FAR
|
| 19. |
11106231
|
[7] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9
|
LEC
|
| 20. |
100037
|
[8] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 21. |
86528579
|
[4] |
NUT,M8 x 1.25
|
WIN
|
| 22. |
43127
|
[4] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 23. |
100038
|
[18] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 24. |
86629541
|
[14] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 25. |
9706702
|
[4] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
NH
|
| 26. |
43140
|
[6] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
