神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (03-004) - BOOM HYDRAULIC LINES 5.2M (17FT 1IN) (ROTATION) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次

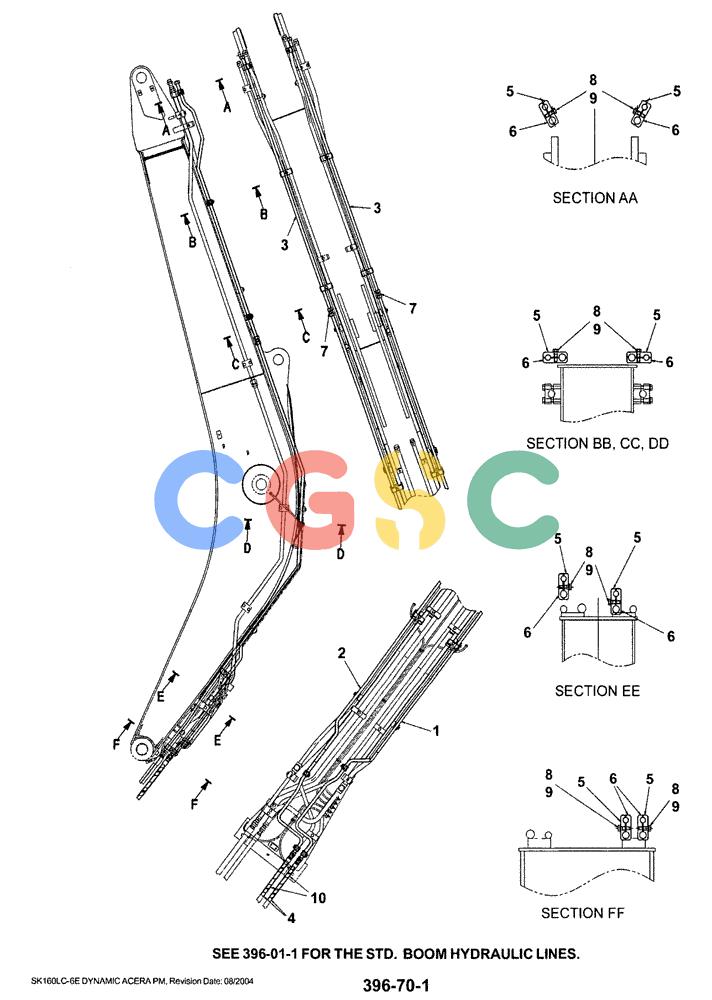

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM42H00045F1 | [1] | LINE | KOBHYD LINES, BOOM (ROTATION) |
| 1. | YM42H01156P1 | [1] | TUBE | KOB |
| 2. | YM42H01157P1 | [1] | TUBE | KOB |
| 3. | YM42H01158P1 | [2] | TUBE | KOB |
| 4. | ZX28N10090 | [2] | FLEXIBLE HOSE | KOB |
| 5. | YN42H01058P1 | [12] | CLAMP | KOB |
| 6. | YN42H01059P1 | [12] | CLAMP | KOB |
| 7. | ZA23B22000 | [2] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 8. | ZS18C12040 | [12] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 9. | ZW26X12000 | [12] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 10. | 2414Z199D050 | [2] | PROTECTIVE SLEEVE | KOBHose -- 500mm Long (19-11/16 in) |
