神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-017) - VALVE, SOLENOID, P/N YN35V00010F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
245 次

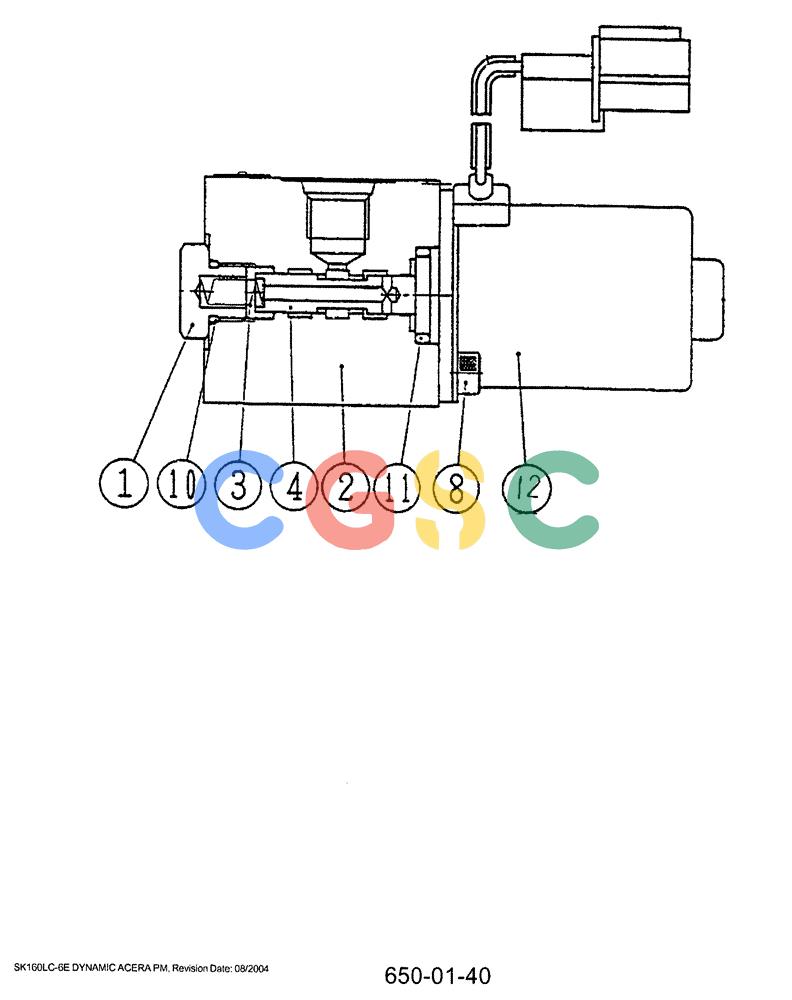

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00010F2 | [1] | VALVE | KOB |
| 1. | 2436U2159S3 | [1] | PLUG | KOB |
| 2. | YN35V00010S002 | [1] | BODY | KOB |
| 3. | 2436U2802S3 | [1] | SPRING | KOB |
| 4. | YN35V00010S004 | [1] | SPOOL | KOB |
| 8. | EN35V00004S010 | [2] | BOLT | KOB |
| 10. | ZD11P01000 | [1] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 11. | ZD11P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20.6mm |
| 12. | YR35V00009S022 | [1] | SOLENOID VALVE | KOB |
