神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-011 ) - PIST0N, CONNROD & CRANKSHAFT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
246 次

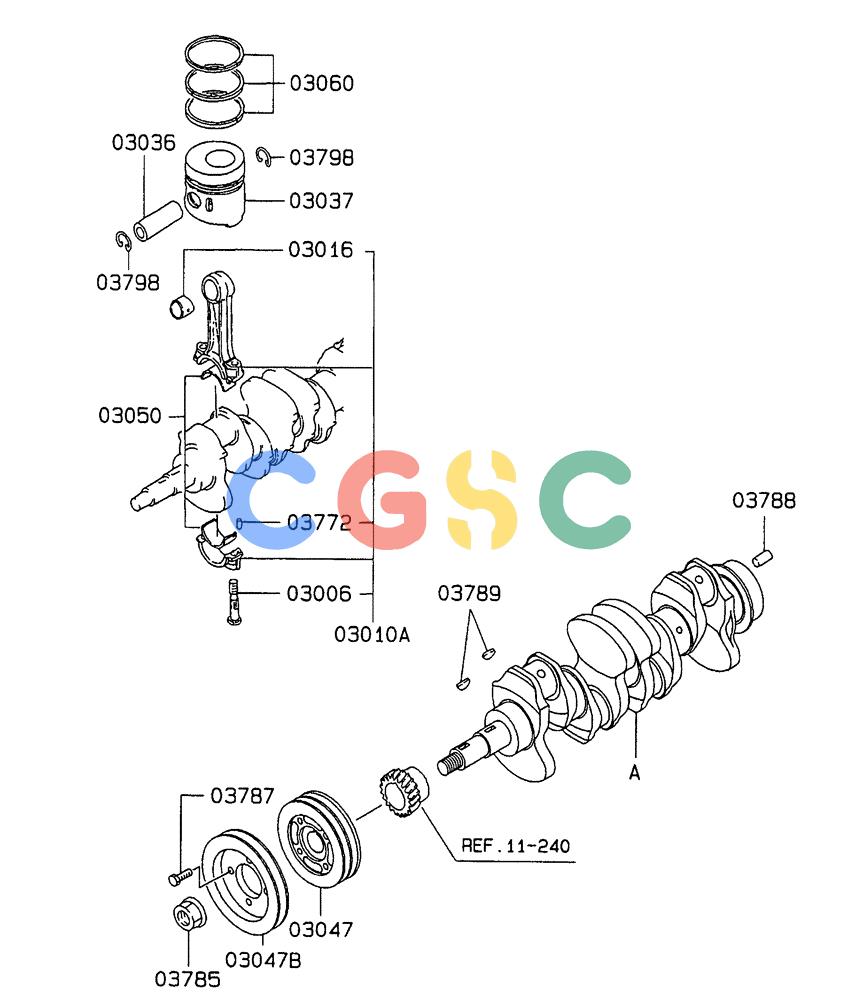

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3006. | VAME300581 | [8] | SCREW | KOBCONNROD,REAMER,12.5X68 |
| 03010A. | VAME240964 | [4] | CONNECTING ROD | KOBASSY Superseded by part number: VAME240967 |
| 3016. | VAME240993 | [4] | BUSHING | KOBCONNROD |
| 3036. | VAME013320 | [4] | PIN | KOBPISTON,36X88 |
| 3037. | VAME014160 | [4] | PISTON | KOBSTD |
| . . | VAME014161 | [4] | PISTON,O/SIZE 0.50 | |
| . . | VAME014162 | [4] | PISTON | KOBO/SIZE 1.00 |
| 3047. | VAME440028 | [1] | PULLEY | KOBCRANKSHAFT |
| 03047B. | VAME217211 | [1] | PULLEY | KOBCRANKSHAFT |
| 3050. | VAME995153 | [1] | BEARING SET | KOBSET, CONNROD,STD |
| . . | VAME995154 | [1] | BEARING | KOBSET, CONNROD,U/SIZE 0.25 |
| . . | VAME995155 | [1] | BEARING ASSY | KOBSET, CONNROD,U/SIZE 0.50 |
| . . | VAME995156 | [1] | BEARING SET | KOBBEARING SET, CONNROD,U/SIZE 0.75 |
| . . | VAME995157 | [1] | BEARING SET, CONNROD,U/SIZE 1.00 | |
| 3060. | VAME997240 | [1] | RING | KOBSET, PISTON,STD |
| . . | VAME997241 | [1] | RING SET, PISTON,O/SIZE 0.50 | |
| . . | VAME997242 | [1] | RING SET, PISTON,O/SIZE 1.00 | |
| 3772. | VAMF472401 | [8] | PIN | KOBCONNROD, DOWEL,4X10 |
| 3785. | VAMH004045 | [1] | NUT | KOBCRANKSHAFT PULLEY, FLANGE.24 |
| 3787. | VAMH000707 | [4] | BOLT | KOBCRANKSHAFT PULLEY, FLANGE.10X30 |
| 3788. | VAMF472407 | [1] | PIN | KOBCRANKSHAFT, DOWEL,14X28 |
| 3789. | VAMS476137 | [2] | WOODRUFF KEY | KOBCRANKSHAFT, .7X22 Superseded by part number: VAF287007022 |
| 3798. | VAME012966 | [8] | SNAP RING | KOBPISTON ALL |
