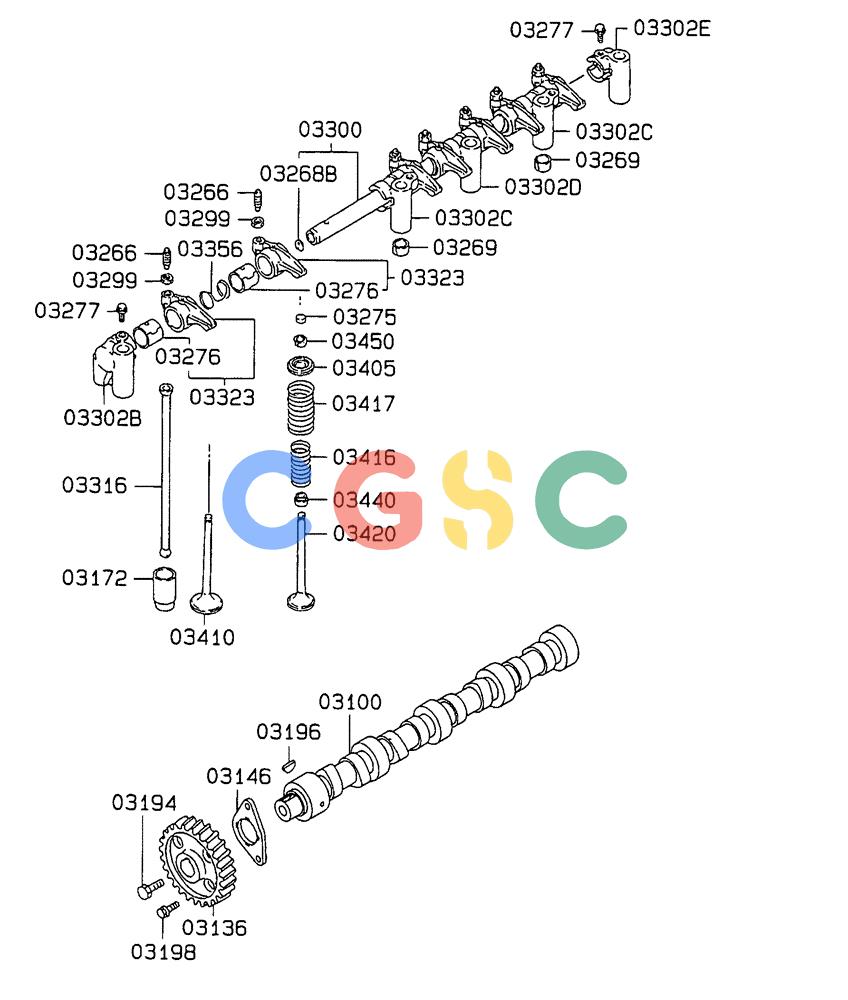

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-012 ) - CAMSHAFT& VALVE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3100. | VAME011895 | [1] | CAMSHAFT | KOBALL |
| 3136. | VAME012764 | [1] | GEAR | KOBCAMSHAFT,N=62 |
| 3146. | VAME013125 | [1] | PLATE | KOBCAMSHAFT THRUST |
| 3172. | VAME017147 | [8] | TAPPET | KOBVALVE |
| 3194. | VAMD050316 | [1] | PLUG | KOBCAMSHAFT |
| 3196. | VAMS476137 | [1] | WOODRUFF KEY | KOBCAMSHAFT, 7X22 Superseded by part number: VAF287007022 |
| 3198. | VAMF140224 | [2] | BOLT | KOBCAMSHAFT,FLANGE,8X18 |
| 3266. | VAME220221 | [8] | SCREW | KOBVALVE GEAR TRAIN,8X32 |
| 03268B. | VAMF665502 | [2] | PLUG | KOBVALVE GEAR TRAIN,EXPANSION, 12 |
| 3269. | VAMH007012 | [2] | PIN | KOBSPRING, VALVE GEAR TRAIN,10X17 |
| 3275. | VAME017459 | [8] | CAP | KOBVALVE GEAR TRAIN,9 |
| 3276. | VAME011254 | [8] | BUSHING | KOBVALVE GEAR TRAIN |
| 3277. | VAMH000999 | [2] | BOLT | KOBVALVE GEAR TRAIN,FLANGE,6X12 |
| 3299. | VAMF430841 | [8] | NUT | KOBVALVE GEAR TRAIN, JAM, 8 |
| 3300. | VAME011309 | [1] | SHAFT | KOBROCKER ARM |
| 03302B. | VAME011307 | [1] | BRACKET | KOBROCKER SHAFT |
| 03302C. | VAME011258 | [2] | BRACKET | KOBROCKER SHAFT |
| 03302D. | VAME011259 | [1] | BRACKET | KOBROCKER SHAFT |
| 03302E. | VAME011308 | [1] | BRACKET | KOBROCKER SHAFT |
| 3316. | VAME012990 | [8] | PUSH ROD | KOBROCKER ARM ALL |
| 3323. | VAME011292 | [8] | ROCKER | KOBARM, INLET 8 EXHAUST VALVE ALL |
| 3356. | VAME011261 | [4] | SPRING | KOBROCKER SHAFT ALL |
| 3405. | VAME011268 | [8] | RETAINER | KOBVALVE SPRING ALL |
| 3410. | VAME013810 | [4] | VALVE | KOBINLET ALL |
| 3416. | VAME017168 | [8] | VALVE SPRING | KOBINR ALL |
| 3417. | VAME017169 | [8] | SPRING | KOBVALVE, OTR ALL |
| 3420. | VAME013834 | [4] | VALVE | KOBEXHAUST ALL |
| 3440. | VAME215092 | [8] | SEAL | KOBVALVE STEM ALL |
| 3450. | VAME011227 | [6] | VALVE | KOBLOCK, SPRING RETAINER ALL |
