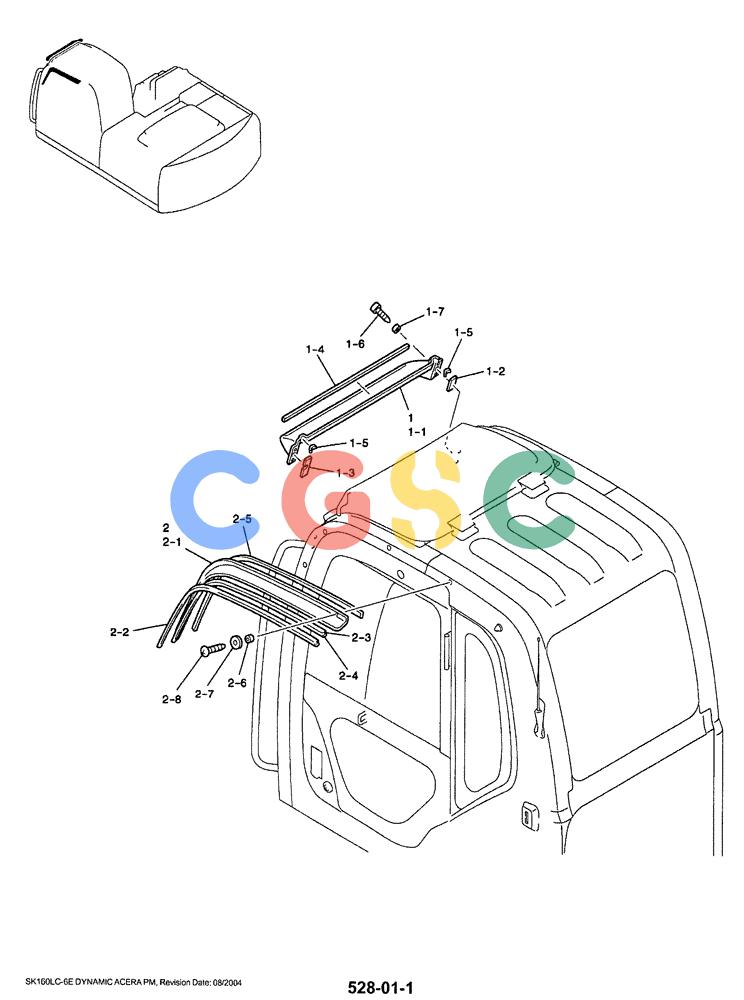

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (05-003) - SUN VISOR FRONT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
831 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN55C00003F1 | [1] | SUN VISOR | KOBFRONT |
| . . | YN55C00003F2 | [1] | SUN VISOR | KOBSIDE Superseded by part number: YN55C01013F1 |
| 1. | YN55C00004F1 | [1] | SUN VISOR | KOBFOR F1 ONLY |
| 1-1. | YN55C00004S001 | [1] | SUN VISOR | KOBFOR F1 ONLY Superseded by part number: YN55C00004F1 |
| 1-2. | YN55C00004S002 | [2] | ADHESIVE | KOBFOR F1 ONLY Superseded by part number: YN55C00004F1 |
| 1-3. | YN55C00004S003 | [2] | ADHESIVE | KOBFOR F1 ONLY Superseded by part number: YN55C00004F1 |
| 1-4. | YN55C00004S004 | [1] | INSULATION | KOBINSULATION,FOR F1 ONLY |
| 1-5. | YN55C00004S005 | [2] | FOAM INSULATION | KOBFOR F1 ONLY Superseded by part number: YN55C00004F1 |
| 1-6. | YN55C00004S006 | [4] | SCREW | KOBSCREW, TAPPING,FOR F1 ONLY |
| 1-7. | YN55C00004S007 | [4] | SPACER | KOBFOR F1 ONLY Superseded by part number: YN55C00004F1 |
| 2. | YN55C01013F1 | [1] | GUTTER | KOBFOR F2 ONLY |
| 2-1. | YN55C01013S001 | [1] | GUARD,FOR F2 ONLY | |
| 2-2. | YN55C01013S002 | [1] | SEAL | KOBFOR F2 ONLY |
| 2-3. | YN55C01013S003 | [1] | ADHESIVE | KOBFOR F2 ONLY |
| 2-4. | YN55C01013S004 | [1] | ADHESIVE | KOBFOR F2 ONLY |
| 2-5. | YN55C01013S005 | [1] | ADHESIVE | KOBFOR F2 ONLY |
| 2-6. | YN55C01013S006 | [5] | SPACER, FOR F2 ONLY | |
| 2-7. | YN55C01013S007 | [5] | WASHER | KOBFOR F2 ONLY |
| 2-8. | YN55C01013S008 | [5] | SCREW, TAPPING,FOR F2 ONLY | |
