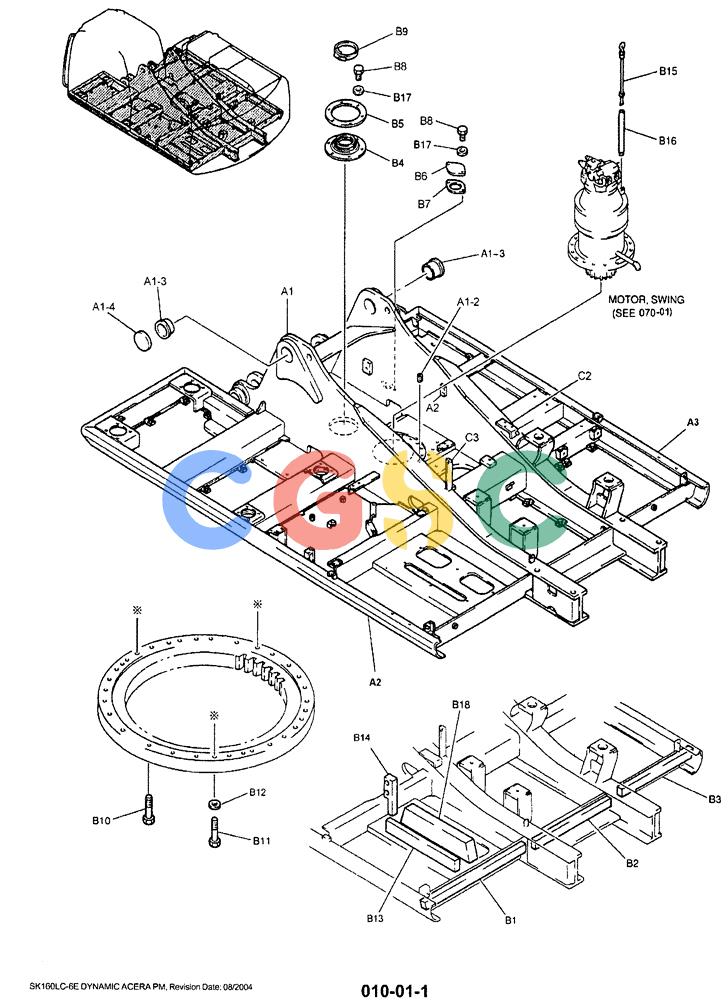

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-001) - UPPER FRAME ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | YM52F00030P1 | [1] | FRAME ASSY | KOBFRAME ASSY, UPPER |
| .. | YM53F01021P1 | [1] | FRAME | KOBLH Deck Assy |
| .. | YM53F01068P1 | [1] | FRAME | KOBLH D Rail Repair Material |
| .. | YM53F01082P1 | [1] | FRAME | KOBRH D Rail Repair Material |
| A1. | YM52F00021F1 | [1] | CENTER SECTION | |
| A1-2. | ZS83C20020 | [2] | SCREW | KOBSet -- M20x2.50x20mm |
| A1-3. | YM52F01012P1 | [2] | BUSHING | KOBID 85 x OD 100 x 56mm Long Flange 118mm |
| A1-4. | 2414T2784 | [1] | COVER | KOBID 95 X OD 146.4 x Th 06mm |
| A2. | YM53F00007P1 | [1] | PLATFORM ASSY. | KOBDECK, LH |
| A3. | YM53F00010P1 | [1] | PLATFORM ASSY. | KOBDECK, RH |
| . . | YM52F00022F1 | [1] | FRAME ASSY | KOBFRAME GROUP, UPPER |
| B1. | YM52F01059P1 | [1] | FOAM INSULATION | KOB |
| B2. | YM52F01018P1 | [1] | INSULATING PANEL | KOBINSULATION |
| B3. | YM52F01060P1 | [1] | FOAM INSULATION | KOB |
| B4. | YN52F01857P1 | [1] | SEAL | KOBWas pn LQ52F01081P1 |
| B5. | YN52F01158P1 | [1] | PLATE | KOB |
| B6. | YN52F01159P1 | [1] | PLATE | KOB |
| B7. | 2416Z434 | [1] | PACKING | KOBRubber |
| B8. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| B9. | ZC16X14800 | [1] | CLIP | KOBClamp, Hose -- Min 130 x Max 166mm |
| B10. | YN64D01012P1 | [29] | CAP | KOBScrew -- M20x2.50x100mm Superseded by part number: ZS18C20100 |
| B11. | 2420T4564D2 | [2] | BOLT,M20 x 2.5 x 105mm | KOBReamer, M20x2.50x105mm |
| B12. | ZW13H20000 | [2] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| B13. | YM52F01062P1 | [1] | FOAM INSULATION | KOBINSULATION Superseded by part number: YM52F01020P1 |
| B14. | YM52F01061P1 | [1] | INSULATION | |
| B15. | 2420R561D1 | [1] | DIPSTICK | KOB |
| B16. | YN32W01038D1 | [1] | TUBE | KOB |
| B17. | YN52F01157P1 | [8] | SEAL | KOB |
| B18. | YM52F01065P1 | [1] | INSULATING PANEL | KOBINSULATION |
