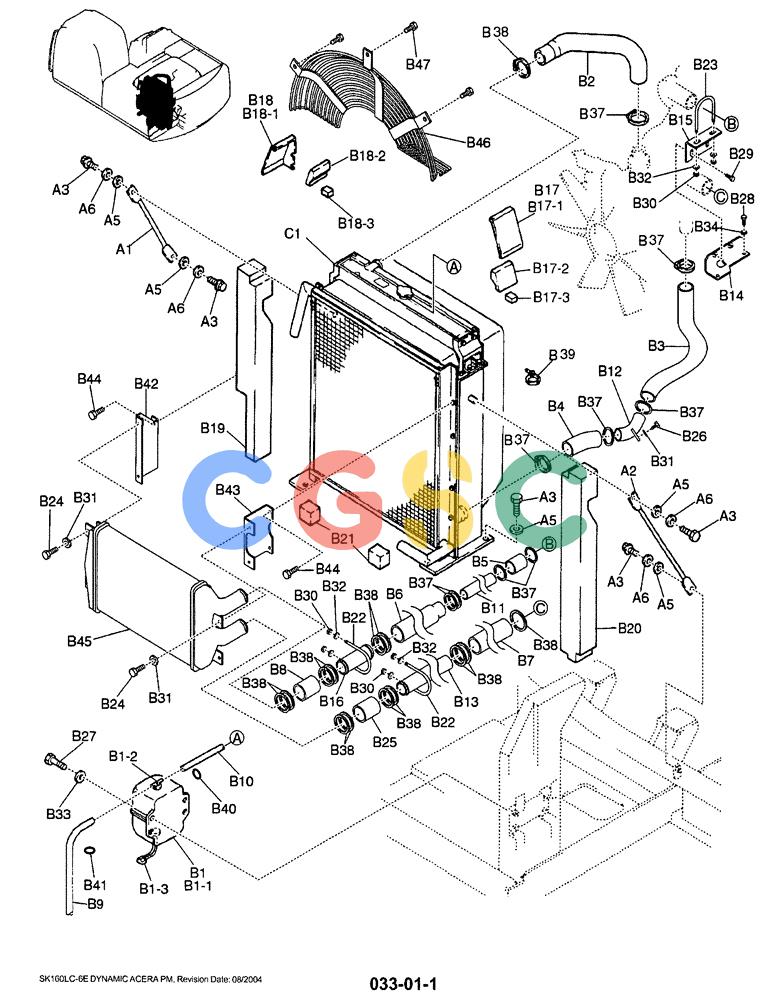

| . . | YM05P00012F1 | [1] | RADIATOR | KOBRADIATOR INSTAL |
| A1. | YM05P01079P1 | [1] | STAY | KOB |
| A2. | YM05P01080P1 | [1] | STAY | KOB |
| A3. | ZS18C12035 | [8] | SCREW,Hex, M12 x 35mm | KOB |
| A5. | ZW16H12000 | [8] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| A6. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| . . | YM05P00011F1 | [1] | RADIATOR GROUP | |
| B1. | YN05P01041F1 | [1] | TANK | KOB |
| B1-1. | YN05P01041S001 | [1] | TANK | KOB Superseded by part number: YN05P01041S1 |
| B1-2. | YN05P01041S002 | [1] | CAP ASSY. | KOB |
| B1-3. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| B2. | YM05P01081P1 | [1] | RADIATOR HOSE | KOB |
| B3. | YM05P01082P1 | [1] | RADIATOR HOSE | KOB |
| B4. | YM05P01083P1 | [1] | RADIATOR HOSE | KOB |
| B5. | LC05P01118P1 | [1] | HOSE | KOB |
| B6. | YM05P01084P1 | [1] | RADIATOR HOSE | KOB |
| B7. | YM05P01057P1 | [1] | RADIATOR HOSE | KOB |
| B8. | YM05P01058P1 | [1] | RADIATOR HOSE | KOB |
| B9. | HX11Y05060DX | [1] | TUBE,8mm ID x 600mm L | KOB |
| B10. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE |
| B11. | YM05P01059P1 | [1] | TUBE,50.8 mm OD x 484, 396 mm L | KOB |
| B12. | YM05P01085P1 | [1] | RIGID TUBE,50.8 mm OD x 164, 34 mm L | KOB |
| B13. | YM05P01086P1 | [1] | RIGID TUBE,63.5 mm OD x 528, 77 mm L | KOB |
| B14. | YM05P01063P1 | [1] | BRACKET | KOB |
| B15. | YM05P01064P1 | [1] | BRACKET | KOB |
| B16. | YM05P01035P1 | [1] | TUBE,63.5 mm OD x 295 mm L | KOB |
| B17. | YM05P01067F1 | [1] | PLATE | KOBASSY |
| B17-1. | YM05P01065P1 | [1] | PLATE | KOB |
| B17-2. | YM05P01069P1 | [1] | INSULATING PANEL | KOB |
| B17-3. | YM05P01071P1 | [1] | INSULATING PANEL | KOB |
| B18. | YM05P01068F1 | [1] | PLATE | KOBASSY. |
| B18-1. | YM05P01066P1 | [1] | PLATE | KOB |
| B18-2. | YM05P01070P1 | [1] | FOAM INSULATION | KOB |
| B18-3. | YM05P01071P1 | [1] | INSULATING PANEL | KOB |
| B19. | YM05P01087P1 | [1] | FOAM INSULATION | KOB Superseded by part number: YM05P01087P2 |
| B20. | YM05P01088P1 | [1] | FOAM INSULATION | KOB |
| B21. | YN05P01126P1 | [2] | FOAM INSULATION | KOB |
| B22. | 2420T2948D6 | [2] | U-BOLT | KOBM08x1.25x ID 64 x 100mm Long |
| B23. | 2420T2948D4 | [1] | BOLT | KOBU-Bolt -- M08x1.25x ID 51 x 83.5mm Long |
| B24. | ZS18C10045 | [4] | SCREW,Hex, M10 x 45mm | KOB |
| B25. | LQ05P01133P1 | [1] | HOSE | KOB |
| B26. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOB |
| B27. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOB |
| B28. | ZS18C06014 | [2] | SCREW,Hex, M6 x 14mm | KOB |
| B29. | ZM22C08025 | [2] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| B30. | ZN18C08007 | [12] | NUT | KOBM08x1.25mm |
| B31. | ZW16H10000 | [6] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| B32. | ZW16H08000 | [6] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B33. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| B34. | ZW16H06000 | [2] | WASHER | KOBID 06 x OD 15 x Th 3.2mm |
| B37. | ZC16X06100 | [9] | CLIP | KOBClamp, Hose -- Min 50 x Max 71mm |
| B38. | ZC16X07000 | [14] | CLIP | KOBClamp, Hose -- Min 60 x Max 81mm |
| B39. | PY01P01043D2 | [1] | CABLE TIE,4.60mm W x 202mm L | KOB Superseded by part number: YT50C01100P1 |
| B40. | YN03E01001D5 | [1] | CLIP | KOB195mm Long (7-43/64 in) -- Black |
| B41. | 2432R233D2 | [1] | CLIP | KOB37x12x40mm |
| B42. | YM05P01077P1 | [1] | U-BRACKET | KOB |
| B43. | YM05P01078P1 | [1] | BRACKET | KOB |
| B44. | ZM22C10030 | [4] | BOLT | KOBM10x1.50x30mm (Incls. Washer & Lockwasher) |
| B45. | NSS | [1] | NOT SOLD SEPARAT | CONINTERCOOLER |
| B46. | YM05P01093P1 | [1] | GUARD | KOB |
| B47. | ZM22C08020 | [3] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| C1. | YM05P00013F1 | [1] | RADIATOR | KOBASSY Superseded by part number: YM05P00013F2 |
| C1-A. | YN05P00010S006 | [1] | RADIATOR CAP | KOBNot shown - Radiator Superseded by part number: YN05P00088S032 |
