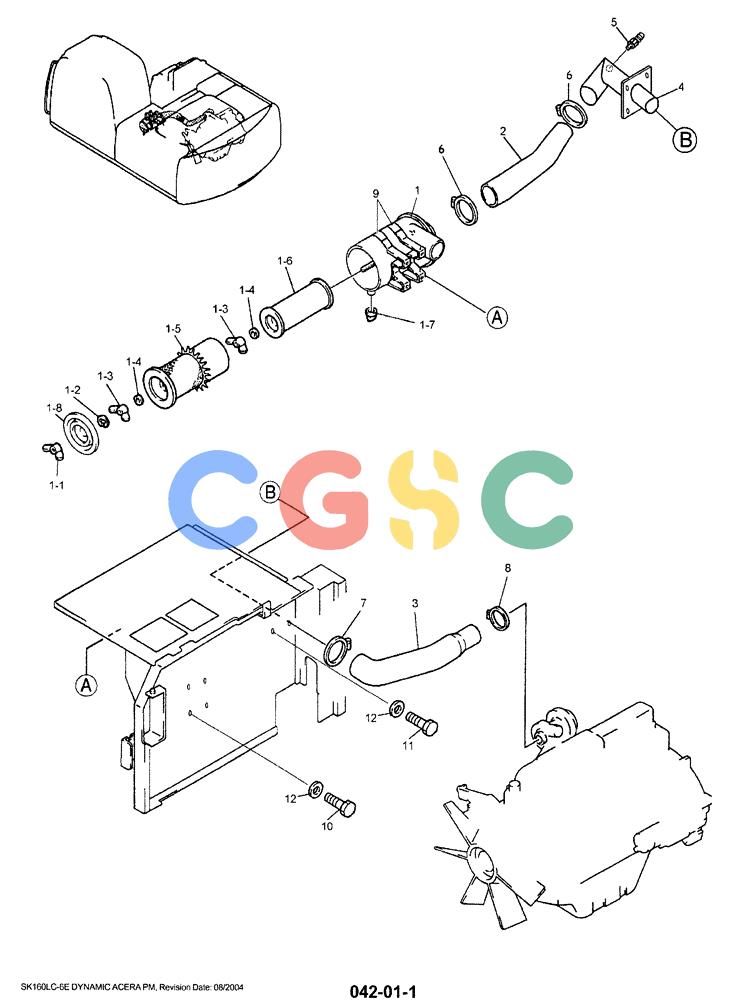

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-006) - AIR CLEANER ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM11P00001F1 | [1] | AIR CLEANER | KOBCLEANS ASSY. AIR |
| 1. | 2446R277F1 | [1] | AIR CLEANER | KOB |
| 1-1. | 2446R254S1 | [1] | NUT | KOB |
| 1-2. | 2446R254S2 | [1] | RING | KOB |
| 1-3. | 2446R254S3 | [2] | NUT | KOB |
| 1-4. | 2446R254S4 | [2] | WASHER | KOB |
| 1-5. | 2446R277S5 | [1] | AIR FILTER | KOB |
| 1-6. | 2446R277S6 | [1] | AIR FILTER | KOB |
| 1-7. | 2446R255S7 | [1] | EJECTOR | KOB |
| 1-8. | 2446R277S8 | [1] | COVER | KOB Superseded by part number: 2446R255S8 |
| 2. | YM11P01001P1 | [1] | HOSE | KOB |
| 3. | YM11P01002P1 | [1] | HOSE | KOB |
| 4. | YM11P01003P1 | [1] | TUBE | KOB |
| 5. | LE11P01015F1 | [1] | INDICATOR | KOBAir Filter Restriction Gauge |
| 6. | ZC16X11000 | [2] | CLIP | KOBClamp, Hose -- Min 100 x Max 121mm |
| 7. | ZC16X08700 | [1] | CLIP | KOBClamp, Hose -- Min 77 x Max 96mm |
| 8. | ZC16X08100 | [1] | CLIP | KOB |
| 9. | 2415Z194D2 | [2] | BAND | KOB |
| 10. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 11. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 12. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
