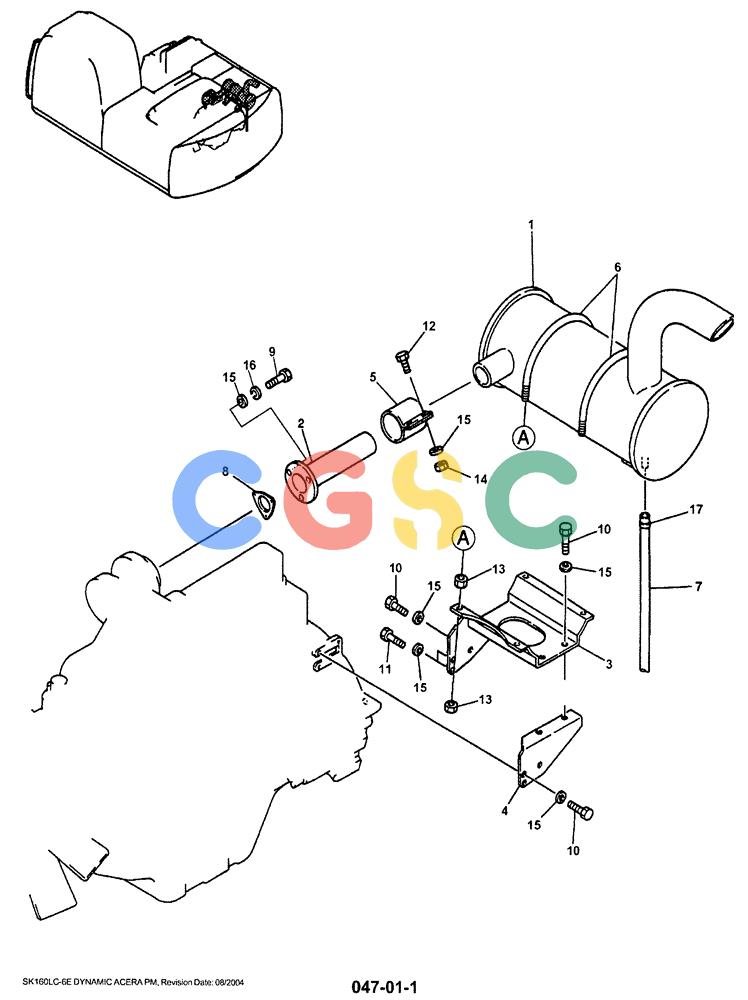

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-007) - MUFFLER ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM12P00008F1 | [1] | MUFFLER ASSY | |
| 1. | YM12P00001P1 | [1] | MUFFLER | KOB |
| 2. | YM12P01001P1 | [1] | TUBE | KOB |
| 3. | YM12P01016P1 | [1] | U-BRACKET | KOB |
| 4. | YM12P01017P1 | [1] | BRACKET | KOB |
| 5. | YN12P01023P1 | [1] | CLAMP,60.5mm - 65mm | KOB |
| 6. | HR91C08000GK | [2] | CLAMP | KOB |
| 7. | HX11Y07070DX | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 8. | VAMD050079 | [1] | GASKET | KOB |
| 9. | ZS18F10020 | [3] | BOLT,Hex, M10 x 20mm | KOBM10x1.25x20mm |
| 10. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 11. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 12. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 13. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 14. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 15. | ZW16X10000 | [11] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 16. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 17. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
