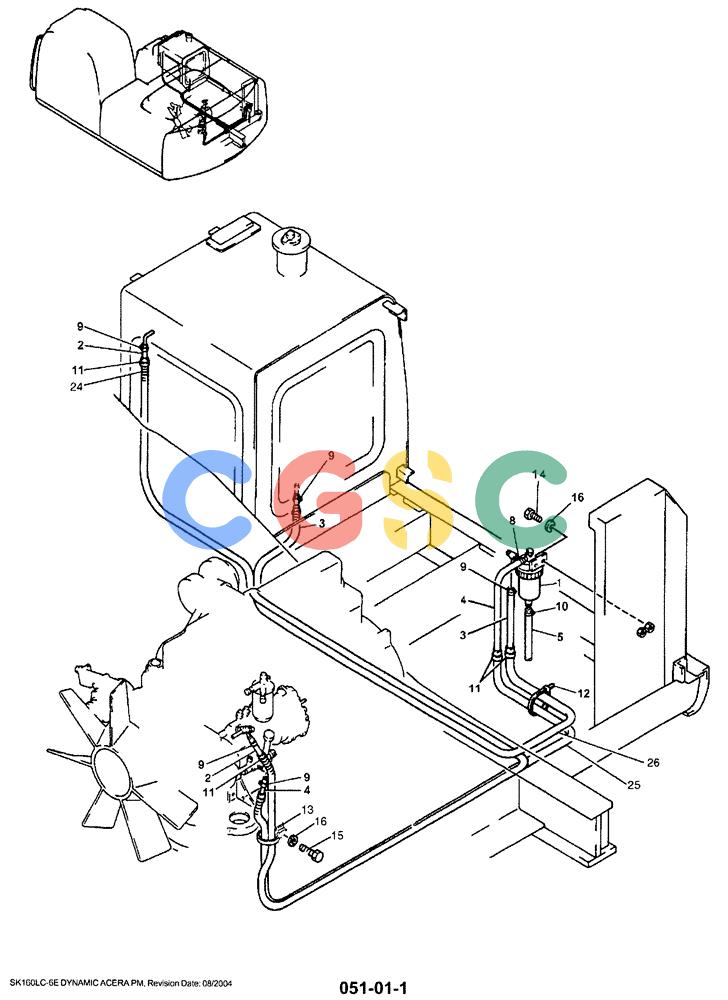

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-008) - FUEL LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
850 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM21P00004F1 | [1] | FUEL LINES | |
| 1. | YN02P01045F1 | [1] | SEPARATOR | KOB Superseded by part number: VAME091412 |
| 2. | 2444R2492D320 | [1] | HOSE | KOB3200mm Long (126 in) |
| 3. | 2444R2492D260 | [1] | HOSE | KOB2600mm Long (102-23/64 in) |
| 4. | 2444R2492D155 | [1] | HOSE | KOB1550mm Long (61-1/64 in) |
| 5. | HX11Y06032DX | [1] | HOSE,10mm ID x 320mm | KOB320mm Long (12-19/32 in) |
| 9. | ZC16X01800 | [6] | CLIP | KOBClamp, Hose -- Min 12 x Max 22mm |
| 10. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
| 11. | PY01P01043D2 | [6] | CABLE TIE,4.60mm W x 202mm L | KOBWire Ties -- 160mm Long Superseded by part number: YT50C01100P1 |
| 12. | PY01P01043D3 | [1] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 13. | ZC48X24014 | [1] | CLIP | KOBClamp, Double -- Ø24x85mm Long |
| 14. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 15. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 16. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 24. | HX81X19310DX | [1] | FLEXIBLE HOSE | SMTUBE |
| 25. | HX81X19250DX | [1] | TUBE | KOB2500mm Long (98-7/16 in) |
| 26. | HX81X19145DX | [1] | TUBE | |
