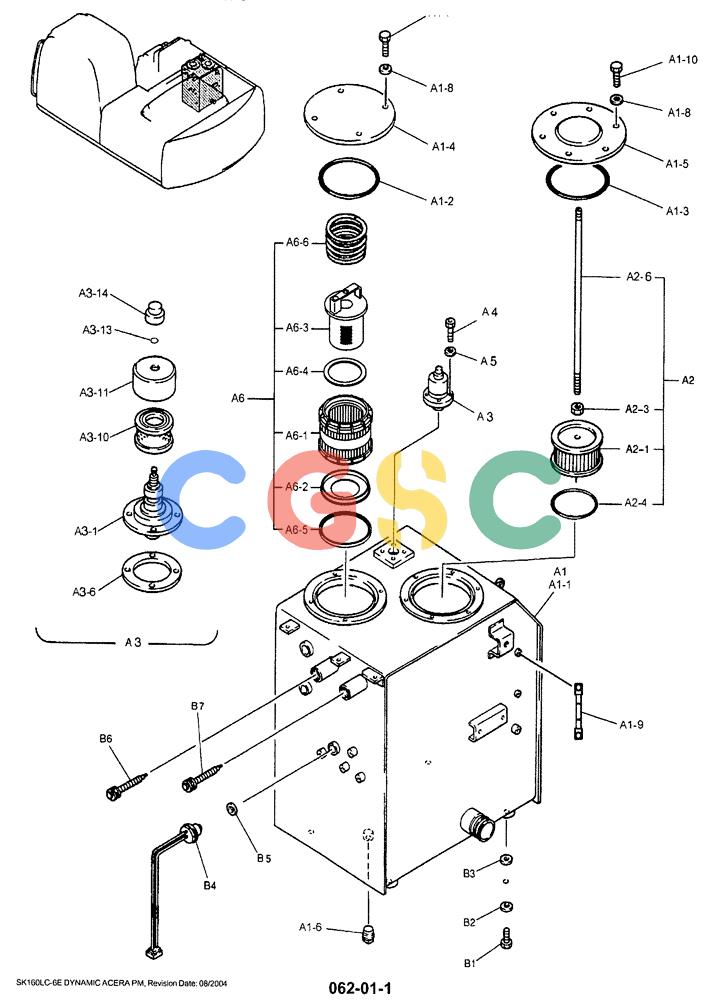

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-011) - HYDRAULIC TANK (ASN YM03U0740) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
479 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM33H00019F4 | [1] | RESERVOIR, HYDRAULIC | KOB(STD) (FOR S/N YM03U0740-) |
| A1. | YM33H00018F2 | [1] | TANK | KOB |
| A1-1. | YM33H00022P1 | [1] | TANK | KOBTANK |
| A1-2. | ZD11G16500 | [2] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| A1-4. | YY33H01071P1 | [1] | COVER | KOB |
| A1-5. | YY33H01072P1 | [1] | COVER | KOB Superseded by part number: YY33H01104P1 |
| A1-6. | ZE72X08000 | [1] | PLUG | KOB1/2" PF, (Incls. O-Ring ZD12P01800) |
| A1-7. | ZS18C10020 | [8] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| A1-8. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A1-9. | YN58S00009F1 | [1] | GAUGE | KOB |
| A2. | YW50V00004FB | [1] | STRAINER ASSY. | KOBSTRAINER, SUCTION |
| A2-1. | YN50V00002S001 | [1] | STRAINER ASSY. | KOB |
| A2-3. | ZN11C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| A2-4. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| A2-6. | YW50V00004S006 | [1] | BOLT | KOBM10x1.50x365mm |
| A3. | YN57V00002F5 | [1] | BREATHER ASSY. | KOB Superseded by part number: YN57V00010F1 |
| A3-1. | 2446U260S1 | [1] | BODY | KOB |
| A3-6. | 2446U260S8 | [1] | PACKING | KOB |
| A3-10. | YN57V00002S010 | [1] | ELEMENT | KOB Superseded by part number: 47640920 |
| A3-11. | YN57V00002S011 | [1] | COVER | KOB |
| A3-13. | ZD11P01400 | [1] | O-RING | KOBID 13.8 ± 0.19 x OD 18.6mm |
| A3-14. | YN57V00002S014 | [1] | NUT | KOB |
| A4. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm |
| A5. | ZW26K06000 | [4] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| A6. | YV52V01001F1 | [1] | ELEMENT | KOB Superseded by part number: YV52V01003F5 |
| A6-1. | YN52V01011P1 | [1] | FILTER | KOB Superseded by part number: YN52V01021P1 |
| A6-2. | YN52V01008S002 | [1] | PLATE | KOB |
| A6-3. | YV21V00001P1 | [1] | CHECK VALVE | KOB |
| A6-4. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| A6-5. | YN52V01008S005 | [1] | PACKING | KOB |
| A6-6. | LC33H01009P1 | [1] | SPRING | KOB |
| . . | YM33H00020F1 | [1] | TANK | KOBTANK, INSTAL HYDR |
| B1. | ZS13C16040 | [4] | SCREW | KOBM16x2.0x40mm |
| B2. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| B3. | LE33H01017D1 | [3] | SHIM,1.0mm Thk | KOB(1.0) |
| B4. | YN52S00023P1 | [1] | PROXIMITY SWITCH | KOB |
| B5. | YN33H01052P1 | [1] | SEAL | KOB |
| B6. | YN21V00007F1 | [1] | CHECK VALVE | KOB |
| B7. | YN21V00006F1 | [1] | VALVE | KOB |
