神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-052) - COVER ASSY, UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
889 次

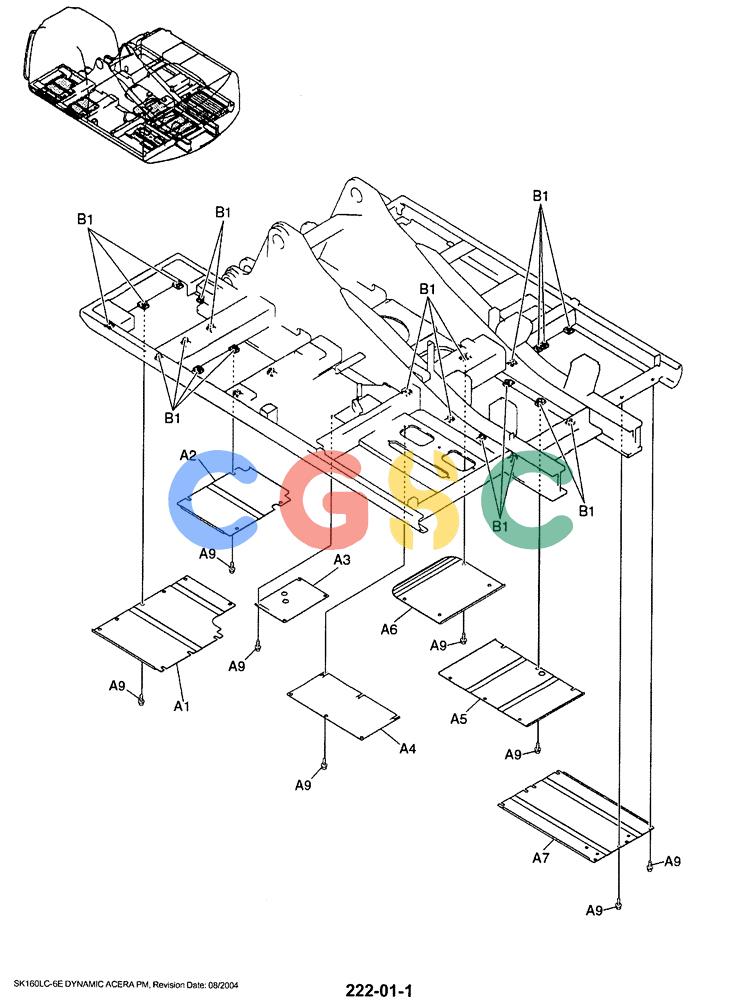

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM24C00003F2 | [1] | COVER ASSY, UNDER | |
| A1. | YM24C01015P1 | [1] | GUARD | KOB |
| A2. | YM24C01016P1 | [1] | GUARD | KOB |
| A3. | YM24C01022P2 | [1] | COVER | KOB |
| A4. | YM24C01025P1 | [1] | COVER | KOB |
| A5. | YM24C01023P1 | [1] | GUARD | KOBCOVER |
| A6. | YM24C01024P1 | [1] | GUARD | KOB |
| A7. | YM24C01029P1 | [1] | COVER | KOB |
| A9. | ZM32C12030 | [39] | BOLT | KOBM12x1.75x30mm (Incls. Washer & Lockwasher) |
| B1. | 2416T13049D6 | [27] | BLOCK | KOB |
