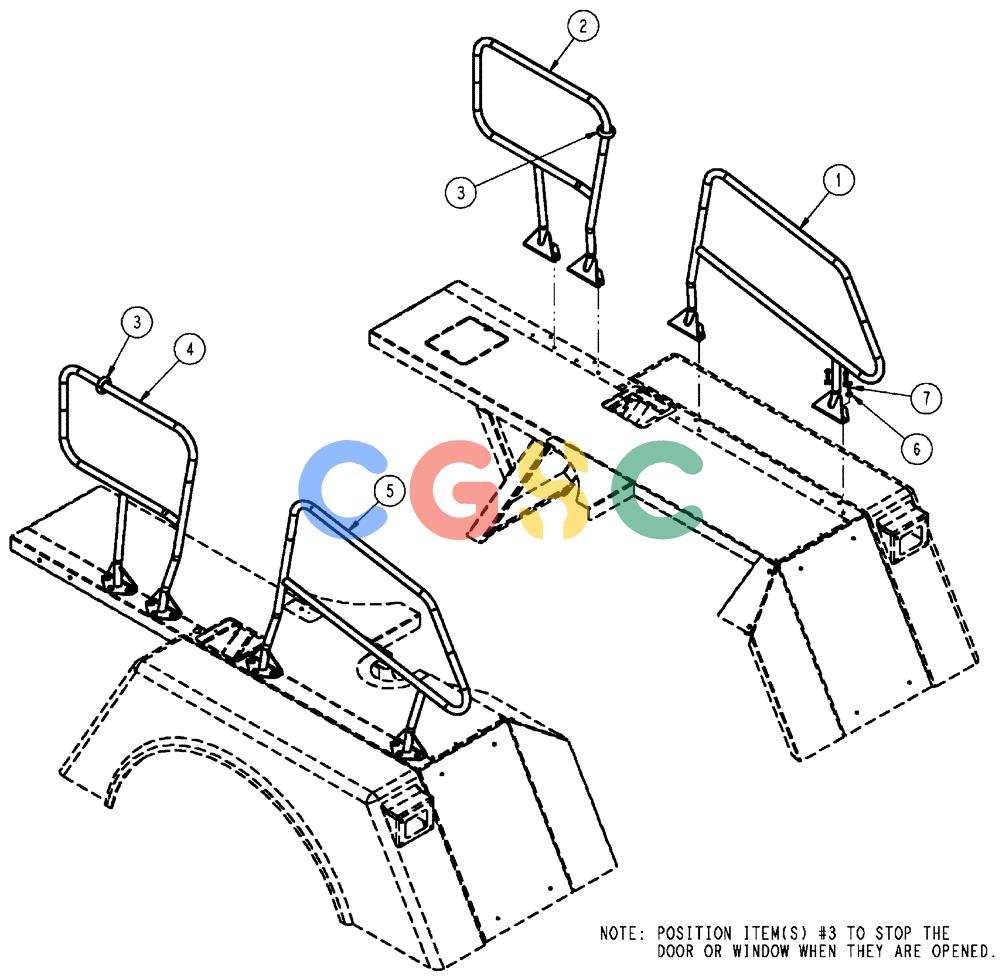

凯斯零件查询(FLX4010) - FLOATER (8/04-8/06) (04-011) - HANDRAIL GROUP, LIQUID Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
971 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87265078
|
[1] |
HANDRAIL
|
BN
Liquid, FR RS Superseded by part number: 47462609
|
| 2. |
87265080
|
[1] |
HANDRAIL
|
BN
Liquid, RR RS Superseded by part number: 47462626
|
| 3. |
87267174
|
[2] |
BUMPER
|
BN
Tubular Door Stop
|
| 4. |
87265081
|
[1] |
HANDRAIL
|
BN
Liquid, RR CS Superseded by part number: 47462605
|
| 5. |
87265079
|
[1] |
HANDRAIL
|
BN
Liquid, FR CS Superseded by part number: 47462623
|
| 6. |
86639325
|
[24] |
WASHER,10.8mm ID x 24.5mm OD x 3mm Thk
|
FAR
|
| 7. |
9706704
|
[24] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
