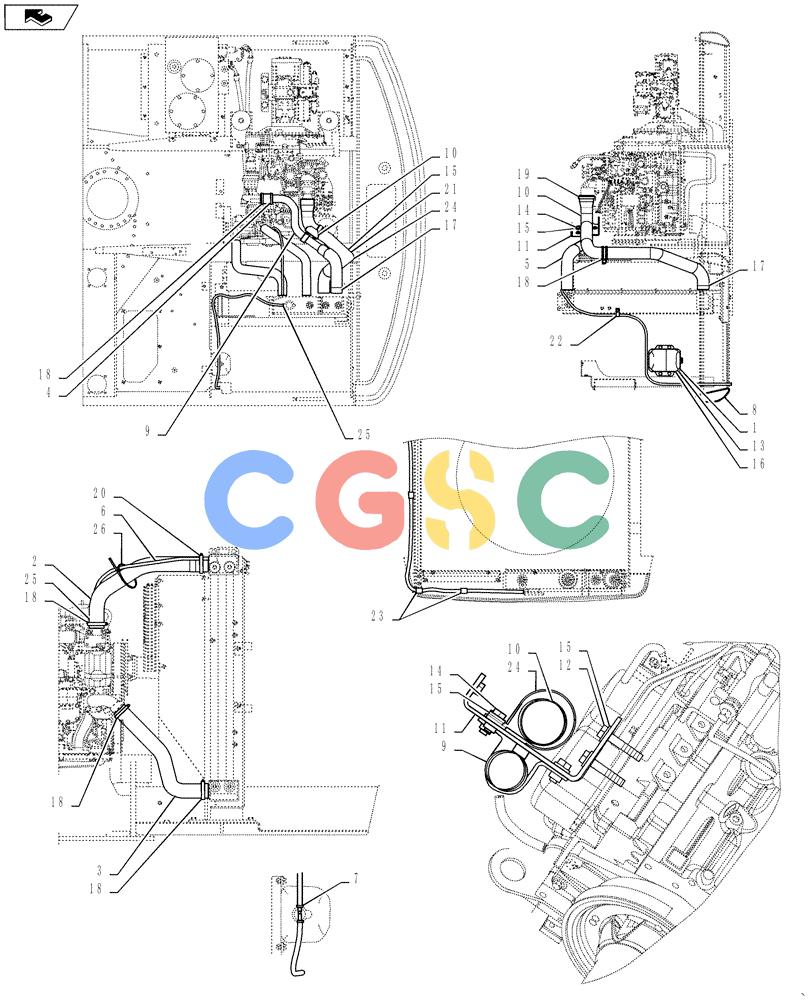

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (10.400.AY) - RADIATOR, GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN05P01041F1 | [1] | TANK | KOB |
| 2. | YB05P01166P1 | [1] | RADIATOR HOSE | KOB Superseded by part number: 87606376 |
| 3. | YB05P01164P1 | [1] | RADIATOR HOSE | KOB Superseded by part number: 87606365 |
| 4. | YM05P01028P1 | [1] | RADIATOR HOSE | KOB |
| 5. | YB05P01021P1 | [1] | RADIATOR HOSE | KOB |
| 6. | HX11Y05068DX | [1] | TUBE,8mm ID x 680mm L | KOB |
| 7. | YB05P01024P1 | [1] | TUBE,398, 360 mm L | KOB |
| 8. | YB05P01165P1 | [1] | RADIATOR HOSE | KOB Superseded by part number: 87606377 |
| 9. | YB05P01109P1 | [1] | PLATE ASSY. | KOB |
| 10. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOB |
| 11. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOB |
| 12. | ZS18C10025 | [3] | SCREW,Hex, M10 x 25mm | KOB |
| 13. | ZS18C08020 | [6] | SCREW,Hex, M8 x 20mm | KOB |
| 14. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOB |
| 15. | ZW16H10000 | [2] | WASHER | KOB |
| 16. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOB |
| 17. | LS05P01473P1 | [1] | CLIP | KOB Superseded by part number: L115548 |
| 18. | LS05P01473P1 | [2] | CLIP | KOB Superseded by part number: L115548 |
| 19. | YN05P01890D5 | [3] | CLIP | KOB |
| 20. | ZC16X06100 | [1] | CLIP | KOB |
| 21. | YB05P01108P1 | [2] | CLIP | KOB Superseded by part number: 87301362 |
| 22. | YM05P01105P1 | [1] | CLIP | KOB Superseded by part number: 87547970 |
| 23. | YN03E01001D5 | [1] | CLIP | KOB |
| 24. | YB05P01108P1 | [1] | CLIP | KOB Superseded by part number: 87301362 |
| 25. | ZC16X01200 | [3] | CLIP,8mm - 15mm | KOB(ZC16X01200) |
| 26. | PY01P01043D8 | [1] | CABLE TIE,102mm L | KOB |
