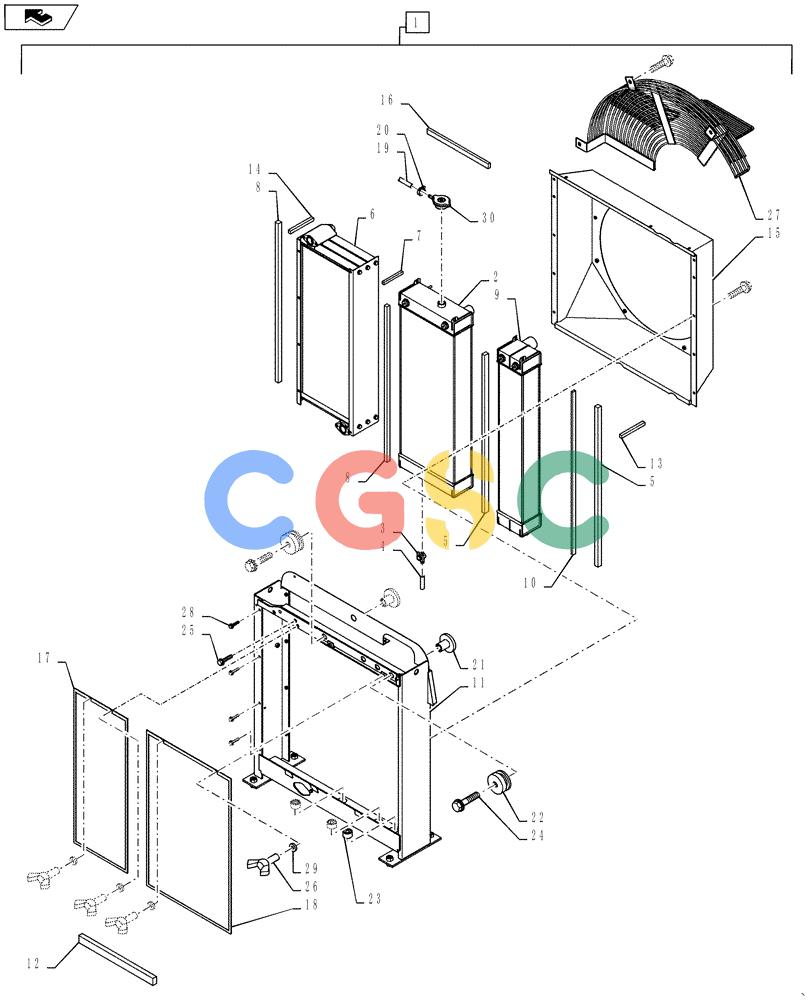

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (10.400.BE) - RADIATOR, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
389 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM05P00020F4 | [1] | RADIATOR | SMAssembly, Incl 2 - 30 |
| 2. | YM05P00019S001 | [1] | RADIATOR | SM |
| 3. | 72215424 | [1] | DRAINCOCK/TAP SUPPLY | SM(2452U221S18) Superseded by part number: 2452U221S18 |
| 4. | 72210208 | [1] | FLEXIBLE HOSE | SM(2452U416S6) Superseded by part number: 2452U416S6 |
| 5. | 72210216 | [2] | INSULATOR | SM(YB05P00001S022) Superseded by part number: YB05P00001S022 |
| 6. | YM05P00019S006 | [1] | RADIATOR | SMOil Cooler |
| 7. | YM05P00019S007 | [2] | INSULATOR | SM |
| 8. | YN05P00062S014 | [2] | INSULATOR | SM |
| 9. | YN05P00058S003 | [1] | COOLER | SM |
| 10. | YN05P00058S022 | [1] | INSULATOR | SM |
| 11. | YM05P00019S028 | [1] | SUPPORT | SM |
| 12. | YM05P00019S012 | [2] | INSULATOR | SM |
| 13. | YN05P00058S019 | [2] | INSULATOR | SM |
| 14. | YN05P00062S013 | [2] | INSULATOR | SM |
| 15. | YM05P00020S015 | [1] | GUARD | SM |
| 16. | YM05P00019S016 | [2] | GASKET | SM |
| 17. | YM05P00019S017 | [1] | GUARD | SM |
| 18. | YM05P00019S018 | [1] | GUARD | SM |
| 19. | 72213767 | [1] | HOSE | SM(GB05P00001S006) Superseded by part number: GB05P00001S006 |
| 20. | 72213766 | [2] | CLIP | IMO(2452U267S8) Superseded by part number: 2452U267S8 |
| 21. | YM05P00019S021 | [4] | COLLAR | SM |
| 22. | YN05P00058S013 | [4] | SEAT CUSHION | SM |
| 23. | YN05P00058S014 | [4] | SEAT CUSHION | KOB |
| 24. | LS05P00009S025 | [4] | SCREW | KOB Superseded by part number: ZM73C10030 |
| 25. | 87353624 | [13] | SCREW | SM(2452U377S6) Superseded by part number: 2452U377S6 |
| 26. | 72210213 | [4] | SCREW | SM(2452U202S5) Superseded by part number: 2452U202S5 |
| 27. | YM05P00020S027 | [1] | GUARD | SM |
| 28. | YM05P00019S028 | [1] | SUPPORT | SM |
| 29. | YN05P00058S032 | [2] | GASKET | SM |
| 30. | YN05P00088S032 | [1] | RADIATOR CAP | KOB |
