神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.106.AN[00]) - PTO ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
737 次

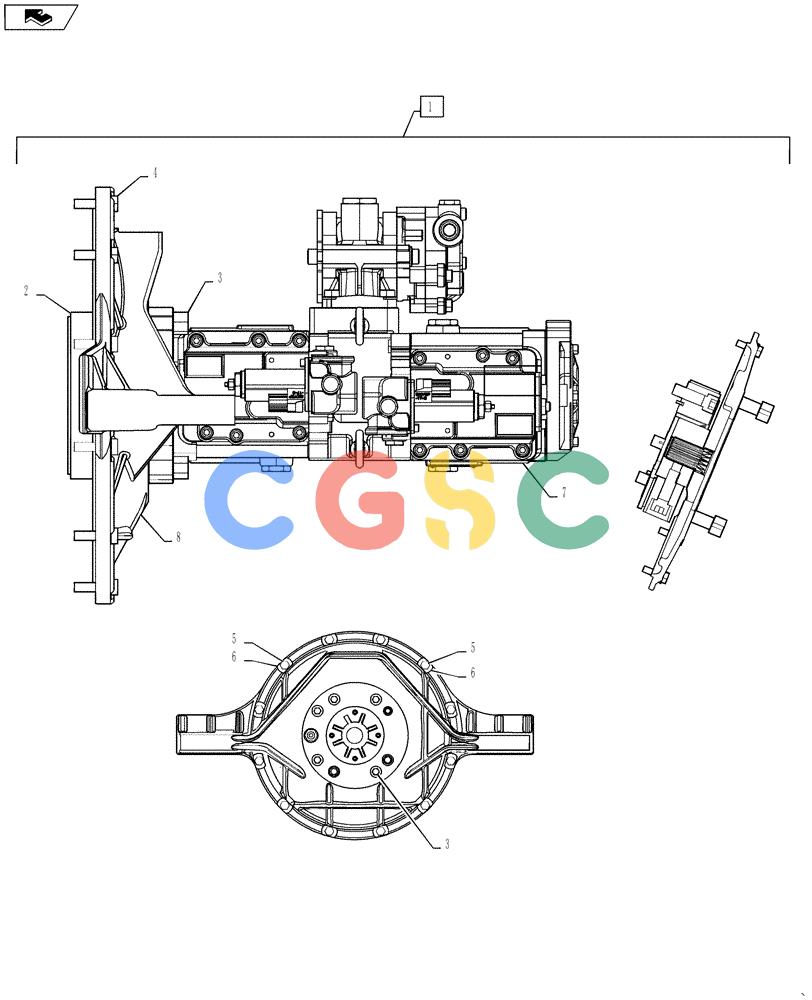

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONPTO Assembly (YB30P00003F1 / 87586077), Incl 2 - 7 |
| 2. | 87371203 | [1] | ELASTIC JOINT | SM |
| 3. | 14426434 | [4] | SCREW,M16 | LEC |
| 4. | 11106634 | [8] | BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 5. | 11107034 | [4] | SCREW | LEC Superseded by part number: 11107031 |
| 6. | 14496631 | [4] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 7. | YB10V00005F3 | [1] | HYDRAULIC PUMP | KOB |
| 8. | 72207041 | [1] | BRACKET | SM Superseded by part number: YM30P01003P1 |
