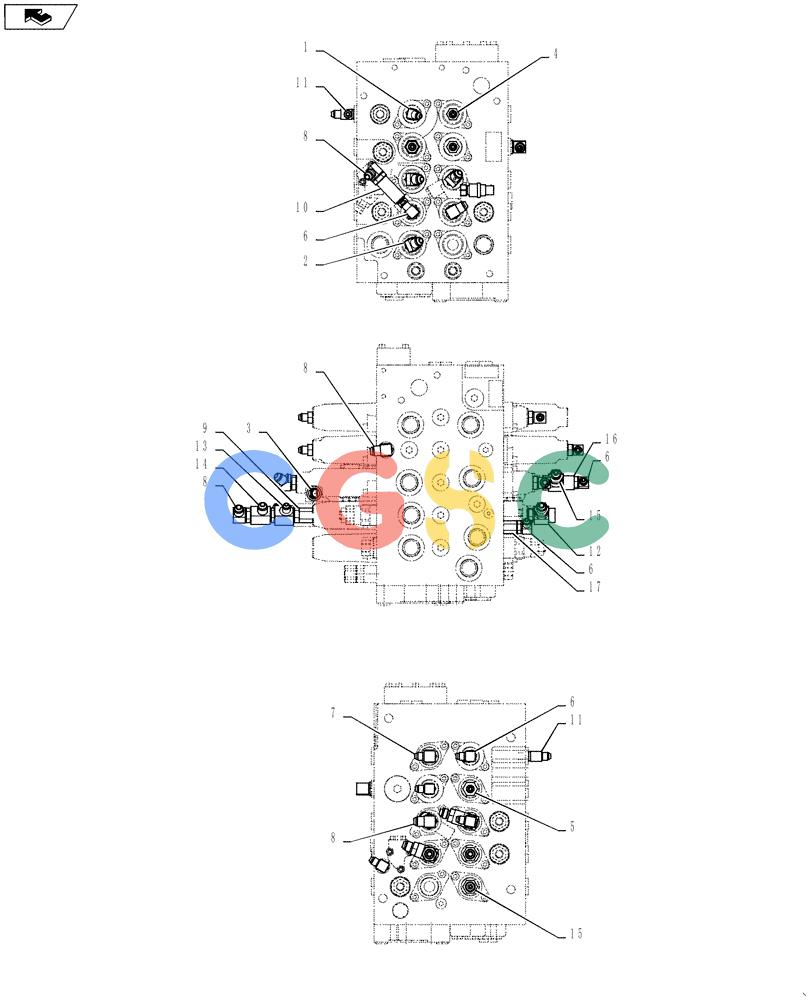

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.322.AW[02]) - CONTROL VALVE LINE (MAIN) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZH42X04000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOB(CNH 72214542) |
| 2. | ZH42X06000 | [3] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB(CNH 72214541) |
| 3. | LC52S00019P1 | [1] | SENSOR | SM(Low Pressure) (Used for Bucket, Boom Up/Down, Swing LH/RH, Arm In/Out, Travel LH/RH, P1/P2 Option, Dozer, N&B Revolution, Boom Rod Press, Boom Overload Alarm, Auto Accel, Option Selector Detect) (Incls. O-Ring ZD12P01100) |
| 4. | ZH22X04000 | [3] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB(CNH 72214744) |
| 5. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(CNH 72214522) |
| 6. | ZH32X04000 | [5] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOB(CNH 72214524) |
| 7. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB(CNH 72214525) |
| 8. | ZH32X06000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB(CNH 72214526) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 9. | 2444Z2891 | [2] | HYD CONNECTOR | KOB(CNH 72214521) |
| 10. | 2444Z3711 | [1] | HYD CONNECTOR | KOB(CNH 72284849) |
| 11. | 2444Z2336 | [1] | TEE | KOB(CNH 72214527) |
| 12. | HH55Q06006G1 | [1] | TEE | KOB(CNH 72283559) |
| 13. | 2444Z3421 | [1] | TEE | KOB(CNH 87338401) |
| 14. | 2444T3402 | [1] | TEE | KOB(CNH 72960345) Superseded by part number: HH55V06006G3 |
| 15. | YN21V00005F3 | [2] | CHECK VALVE | KOB(CNH 72205986) |
| 16. | PW64H01011P1 | [1] | TEE | KOB(CNH 72283853) |
| 17. | 2444Z2525 | [1] | HYD CONNECTOR | KOB(CNH 72217408) Superseded by part number: 72217408 |
