神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.322.AW[03]) - CONTROL VALVE LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
444 次

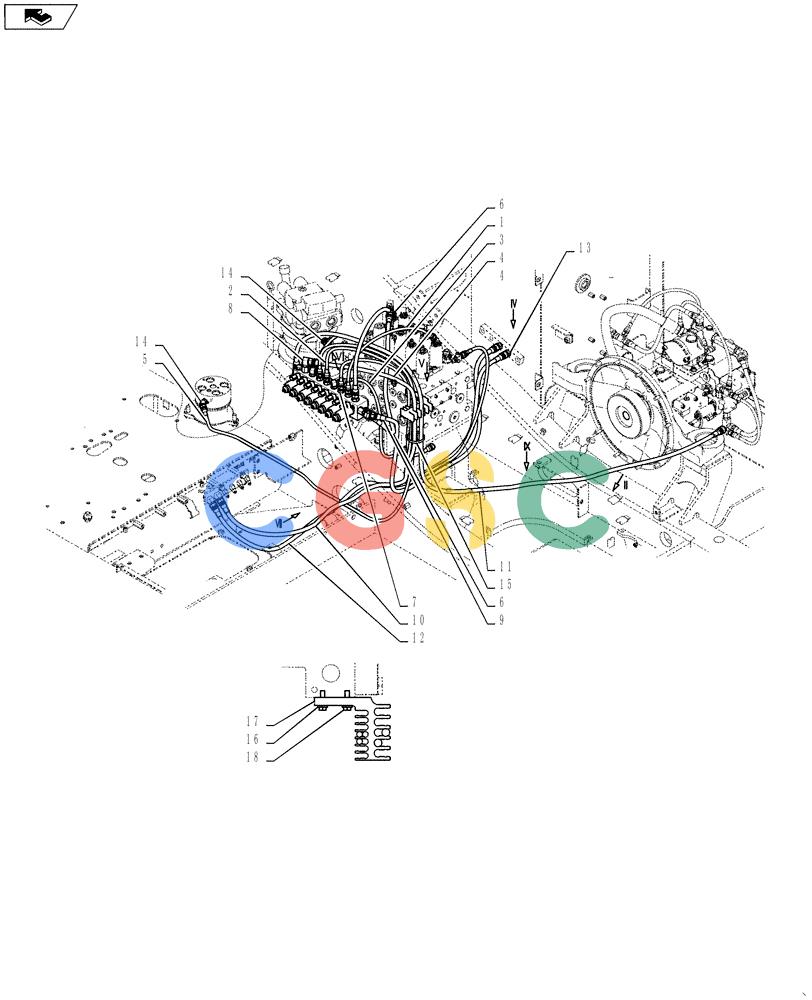

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2420R349D055 | [1] | HOSE,6.35mm ID x 550mm L | KOB(72214535) |
| 2. | 2420R349D044 | [1] | HOSE,440.00 mm | KOB(87574225) Superseded by part number: 2420R349D045 |
| 3. | 2420R349D060 | [1] | HOSE,6.35mm ID x 700mm L | KOB(72214741) |
| 4. | 2420R349D185 | [1] | HOSE,6.35mm ID x 1850mm L | KOB(87521521) |
| 5. | 2420R349D230 | [1] | HOSE ASSY. | KOB(72214547) |
| 6. | 2420R537D065 | [2] | HOSE ASSY.,9.60mm ID x 650mm L | KOB(87338416) |
| 7. | 2420R349D100 | [1] | HOSE | KOB(87338537) Superseded by part number: HX21E04100DX |
| 8. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90? -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 9. | 2420R537D140 | [1] | HOSE ASSY.,9.60mm ID x 1400mm L | KOB(72214550) |
| 10. | 72220102 | [1] | HOSE,9.60 mm ID x 1900.00 mm | IMO(2420R537D190) Superseded by part number: HX21E06190DX |
| 11. | 2420R537D250 | [1] | HOSE ASSY.,9.60mm ID x 2500mm L | KOB(87338399) |
| 12. | 2420R537D210 | [1] | HOSE,9.53mm ID x 2100mm L | KOB(87529938) |
| 13. | ZH22X06000 | [2] | HYD CONNECTOR | KOB(72214523) |
| 14. | ZH42X04000 | [2] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOB(72214524) |
| 15. | PY01P01043D8 | [1] | CABLE TIE,102mm L | KOB(72951499) |
| 16. | ZW16H08000 | [2] | WASHER | KOB(14496531) |
| 17. | LC64H01104P1 | [1] | CLAMP | KOB(87338536) |
| 18. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOB(16043834) |
