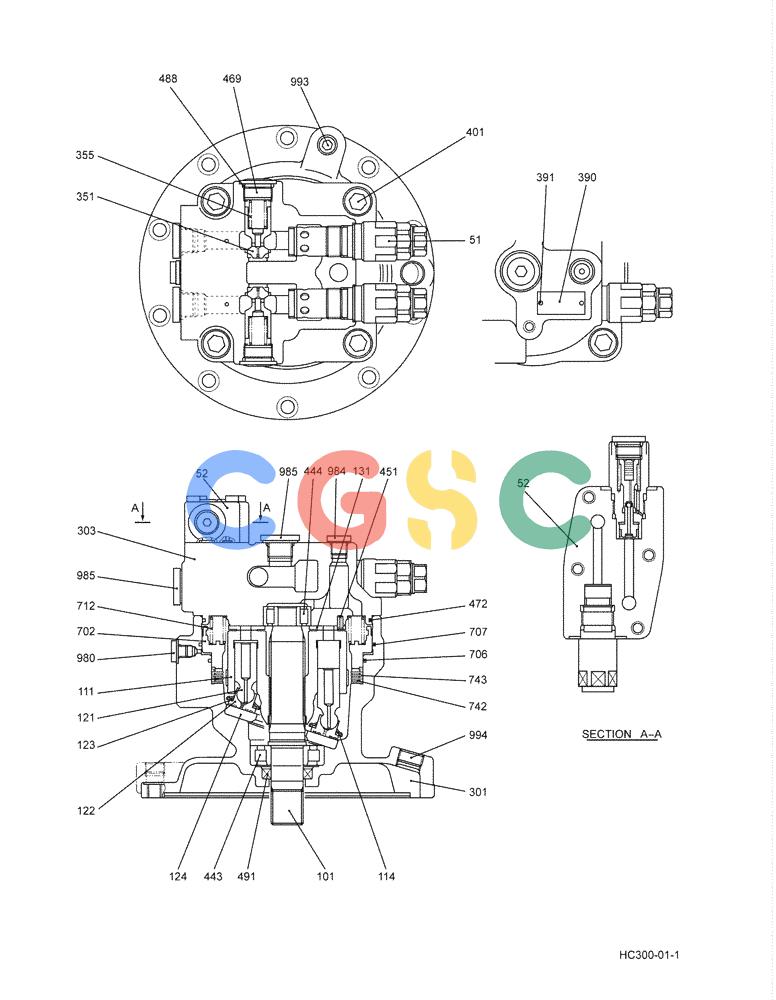

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.352.AL[01]) - MOTOR, ASSY (SWING) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM15V00006F1 | [1] | HYDRAULIC MOTOR | KOBAssembly |
| 51. | YN22V00014F1 | [2] | VALVE | KOBRelief (Includes ZD12G03000) |
| . . | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm (Part Of Ref 51) |
| 52. | YN20V00004F4 | [1] | CONTROL VALVE | KOBAssy |
| 101. | YN15V00025S101 | [1] | SHAFT | KOB |
| 111. | YN15V00025S111 | [1] | CYLINDER | KOB |
| 114. | YN15V00025S114 | [1] | SPRING | KOB |
| 123. | YN15V00025S123 | [1] | PLATE | KOB |
| 124. | YN15V00025S124 | [1] | PLATE | KOB |
| 131. | YN15V00025S131 | [1] | PLATE | KOB |
| 301. | YN15V00035S301 | [1] | BOX | SMCASE |
| 351. | YN15V00025S351 | [2] | SPOOL | KOB |
| 355. | YN15V00002S355 | [2] | SPRING | KOB |
| 391. | 2437U407S983 | [2] | RIVET | KOB |
| 401. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 443. | YN15V00002S011 | [1] | ROLLER BEARING | KOB |
| 444. | LQ15V00008S010 | [1] | ROLLER BEARING | KOB |
| 469. | YN15V00002S012 | [2] | PLUG | KOBPLUG |
| 472. | YN15V00025S489 | [1] | O-RING,3.5mm Thk x 173mm ID, 75 Duro | KOB |
| 488. | ZD12P02800 | [2] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 491. | YN15V00035S491 | [1] | OIL SEAL | SMOIL SEAL |
| 702. | YN15V00002S014 | [1] | PISTON | KOB |
| 706. | 2441U736S706 | [1] | O-RING | KOB |
| 707. | 2415U188S707 | [1] | O-RING | KOB |
| 712. | YN15V00025S712 | [16] | SPRING,ID1.1mm : OD1.8mm : W=3.7mm (this is spring) | KOB |
| 742. | YN15V00025S742 | [3] | PLATE,ID14mm : OD15.5mm : W=1.7mm | KOB |
| 743. | YN15V00025S743 | [4] | PLATE,ID14mm : OD15.5mm : W=2mm | KOB |
| 980. | YN15V00035S980 | [1] | PLUG | SMPLUG |
| 984. | YN15V00035S984 | [1] | PLUG | SMPLUG |
| 985. | YN15V00035S985 | [3] | PLUG | SMPLUG |
| 993. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 994. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| . . | YN15V00025R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEMS - 121X9, 122X9 |
| . . | YM15V00006R100 | [1] | KIT | SMCONSISTS OF ITEMS - 472X1, 488X2, 491X1, 706X1, 707X1 |
| . . | YN15V00025R200 | [1] | REPAIR KIT | KOBCONSISTS OF ITEMS - 303X1, 451X2 |
