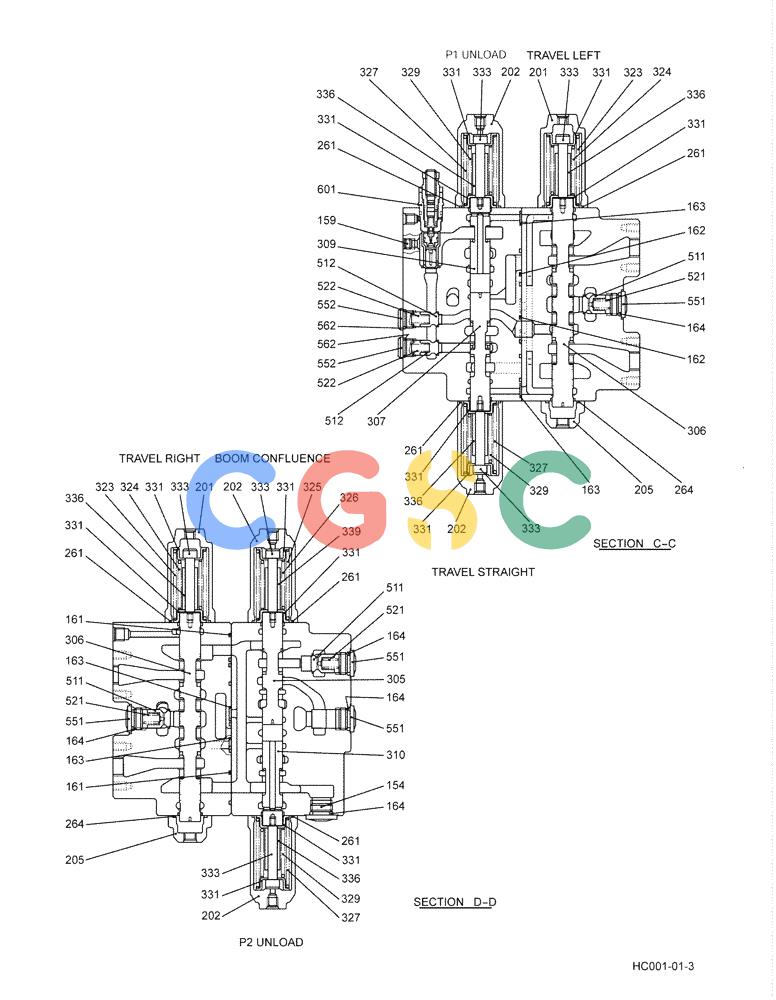

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.359.AG[03]) - CONTROL VALVE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
856 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | YM30V00013F1 | [1] | CONTROL VALVE | KOB |
| 154. | YN30V00001S154 | [2] | PLUG | KOB |
| 159. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 161. | ZD12P01000 | [7] | O-RING | KOB |
| 162. | ZD12G03000 | [13] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 163. | ZD12P01500 | [4] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 164. | ZD12P02500 | [6] | O-RING | KOBID 24.7mm x OD 28.2mm |
| 201. | YY30V00058S084 | [3] | COVER ASSY | KOB |
| 202. | YY30V00058S085 | [6] | COVER ASSY | KOB |
| 205. | YM30V00008S205 | [7] | GUARD | SMCover |
| 261. | ZD12G04000 | [12] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB |
| 264. | ZD12G03500 | [8] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB |
| 305. | YM30V00008S305 | [1] | PISTON | SMSPOOL Superseded by part number: YM30V00008R140 |
| 306. | YM30V00011S306 | [2] | SPOOL | SM |
| 307. | YM30V00011S307 | [1] | SPOOL | KOB Superseded by part number: YM30V00011R160 |
| 309. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 310. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 323. | YM30V00008S319 | [2] | SPRING | SM |
| 324. | YM30V00008S320 | [2] | SPRING | SM |
| 325. | YM30V00008S325 | [6] | SPRING | SM |
| 326. | YM30V00008S326 | [1] | SPRING | SM |
| 327. | YM30V00008S327 | [2] | SPRING | SM |
| 329. | YM30V00008S329 | [1] | SPRING | SM |
| 331. | 2436U1265S332 | [24] | SPRING SEAT | KOB |
| 333. | 2436U1265S336 | [12] | BOLT | KOB |
| 336. | YM30V00008S336 | [6] | SEAL RETAINER | SMSTOPPER |
| 339. | YM30V00008S339 | [5] | SEAL RETAINER | SMSTOPPER |
| 511. | 2436U1265S511 | [11] | POPPET | KOB |
| 512. | YW30V00001S513 | [2] | POPPET | KOB |
| 521. | 2436U1265S521 | [11] | SPRING | KOB |
| 522. | YN30V00101S522 | [2] | SPRING | SM |
| 551. | YN30V00021S552 | [12] | PLUG | KOB |
| 552. | YW30V00001S556 | [5] | PLUG | KOB |
| 562. | ZD12P02000 | [18] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 601. | YN22V00001F3 | [1] | VALVE | KOBVALVE ASSY, MAIN RELIEF |
