神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.359.AG[05]) - CONTROL VALVE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
632 次

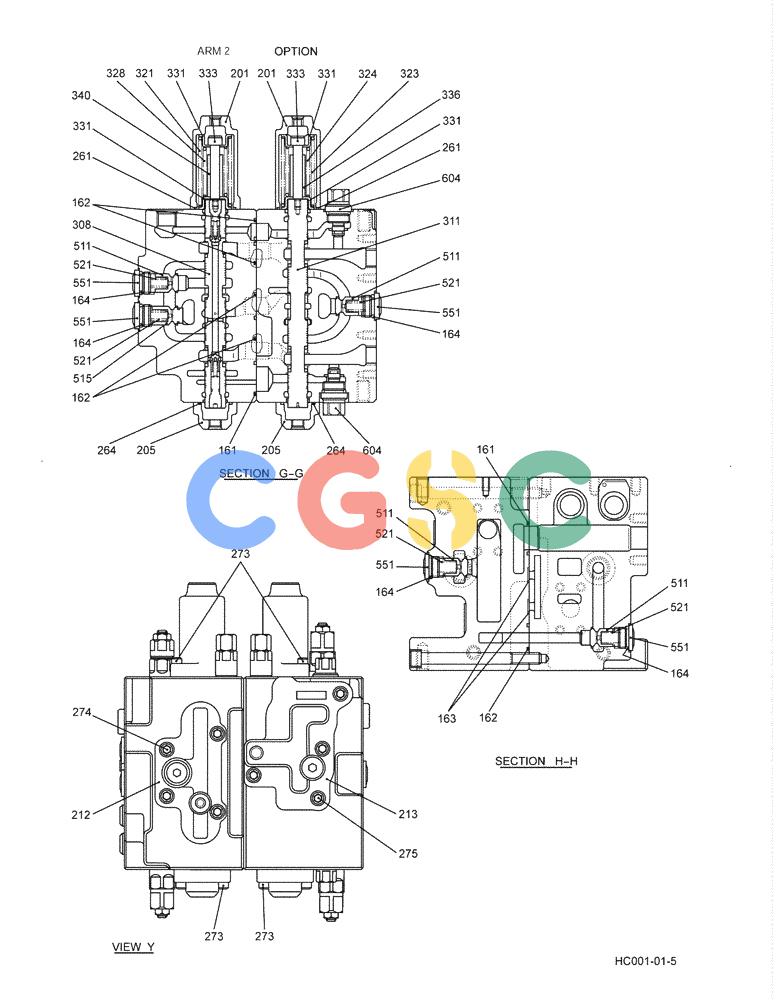

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | YM30V00013F1 | [1] | CONTROL VALVE | KOB |
| 161. | ZD12P02500 | [6] | O-RING | KOBID 24.7mm x OD 28.2mm |
| 162. | ZD12G03000 | [13] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 163. | ZD12P01500 | [4] | O-RING | KOB |
| 164. | ZD12P02000 | [18] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 201. | YY30V00058S084 | [3] | COVER ASSY | KOB |
| 205. | YM30V00008S205 | [1] | GUARD | SMCOVER |
| 212. | YY30V00058S088 | [1] | PLATE | KOB Superseded by part number: YF30V00011S212 |
| 213. | YY30V00058S089 | [1] | PLATE | KOB Superseded by part number: YM30V00008S213 |
| 261. | ZD12G04000 | [12] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB |
| 264. | ZD12G03500 | [8] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB |
| 273. | ZS23C08025 | [40] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 274. | ZS23C12025 | [4] | CAPSCREW,Hex Socket Head, M12 x 52mm | KOBSCREW M12x1.75x25mm |
| 275. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 308. | YM30V00008S308 | [1] | PISTON | SMSPOOL ASSY Superseded by part number: YM30V00008R170 |
| 311. | YM30V00008S311 | [1] | PISTON | SM Superseded by part number: YM30V00008R200 |
| 321. | YM30V00008S321 | [3] | SPRING | SM |
| 323. | YM30V00008S319 | [2] | SPRING | SM |
| 324. | YM30V00008S320 | [2] | SPRING | SM |
| 328. | YM30V00008S328 | [3] | SPRING | SM |
| 331. | 2436U1265S332 | [24] | SPRING SEAT | KOB |
| 333. | 2436U1265S336 | [12] | BOLT | KOB |
| 336. | YM30V00008S336 | [6] | SEAL RETAINER | SM |
| 340. | YM30V00008S337 | [1] | SEAL RETAINER | SMSTOPPER |
| 511. | 2436U1265S511 | [11] | POPPET | KOB |
| 515. | YM30V00008S515 | [1] | POPPET | SM |
| 521. | 2436U1265S521 | [11] | SPRING | KOB |
| 551. | YN30V00001S552 | [12] | PLUG | KOB Superseded by part number: YN30V00021S552 |
| 604. | YN30V01062P1 | [2] | PLUG | SMASSY |
