神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (84.910.AA) - BOOM, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
664 次

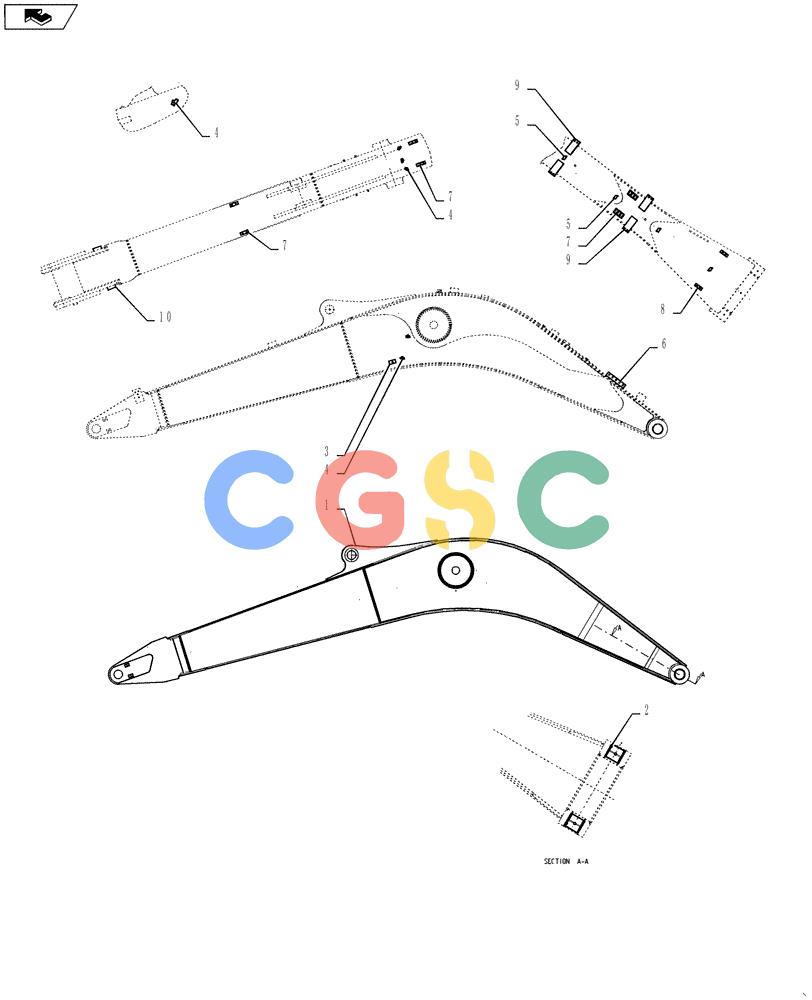

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM02BU0013F1 | [1] | BOOM | KOBBoom Assy, Std |
| 1. | YM02BU0015P1 | [1] | BOOM | KOBBoom, Hoe |
| 2. | YM01V01013P1 | [2] | BUSHING,85mm ID x 100mm OD x 89mm L | KOB |
| 3. | 2416T9878 | [2] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
| 4. | 2432R232D1 | [7] | CLIP | KOB |
| 5. | 2432T4304 | [4] | CLIP | KOB |
| 6. | 2418T22409 | [2] | PLATE | KOB |
| 7. | YN02B01619P1 | [6] | BLOCK,M12 Thd Hole - 75mm L x 41mm W | KOB |
| 8. | YN02B01616P1 | [2] | BLOCK | KOB |
| 9. | YN02B01882P1 | [4] | BLOCK | KOB |
| 10. | YM02BU1011P1 | [2] | BLOCK | KOB |
