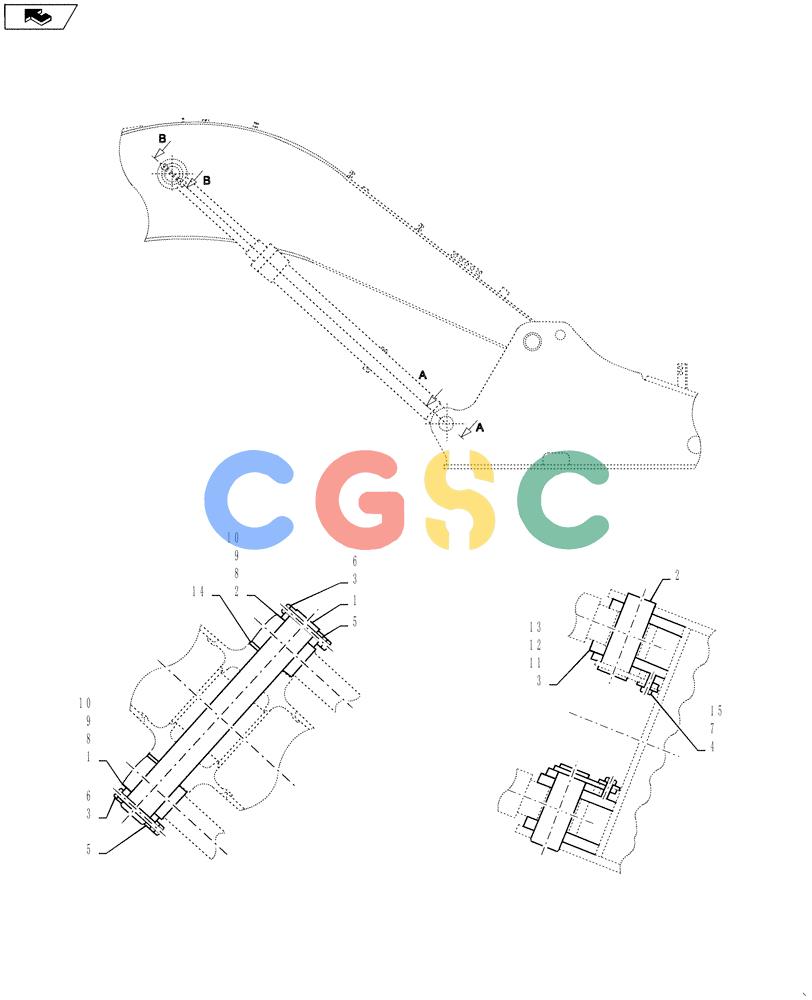

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (84.910.AC) - BOOM, CYLINDER, ATTACHMENT PIN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
921 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM02B01071P1 | [1] | PIN,85mm OD x 718mm L | KOB |
| 2. | YM02B01072P1 | [2] | PIN,85mm OD x 230mm L | KOB |
| 3. | HS18C16150G2 | [2] | SCREW | KOB |
| 4. | ZS18C16035 | [2] | SCREW,Hex, M16 x 35mm | KOB |
| 5. | YN02B01108P1 | [2] | BOSS | KOB Superseded by part number: 72953989 |
| 6. | ZN18C16013 | [4] | NUT | KOB |
| 7. | 2418T17550 | [2] | PLATE | KOB |
| 8. | YN02B01109D1 | [1] | SHIM,87mm ID x 120mm OD x 0.5mm Thk | KOB |
| 9. | YN02B01109D2 | [1] | SHIM,87mm ID x 120mm OD x 0.9mm Thk | KOB |
| 10. | YN02B01109D4 | [1] | SHIM,87mm ID x 120mm OD x 1.6mm Thk | KOB |
| 11. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOB |
| 12. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOB |
| 13. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOB |
| 14. | YN02B01417D1 | [2] | SHIM,87mm ID x 140mm OD x 2mm Thk | KOB |
| 15. | ZW26X16000 | [2] | LOCK WASHER | KOB |
