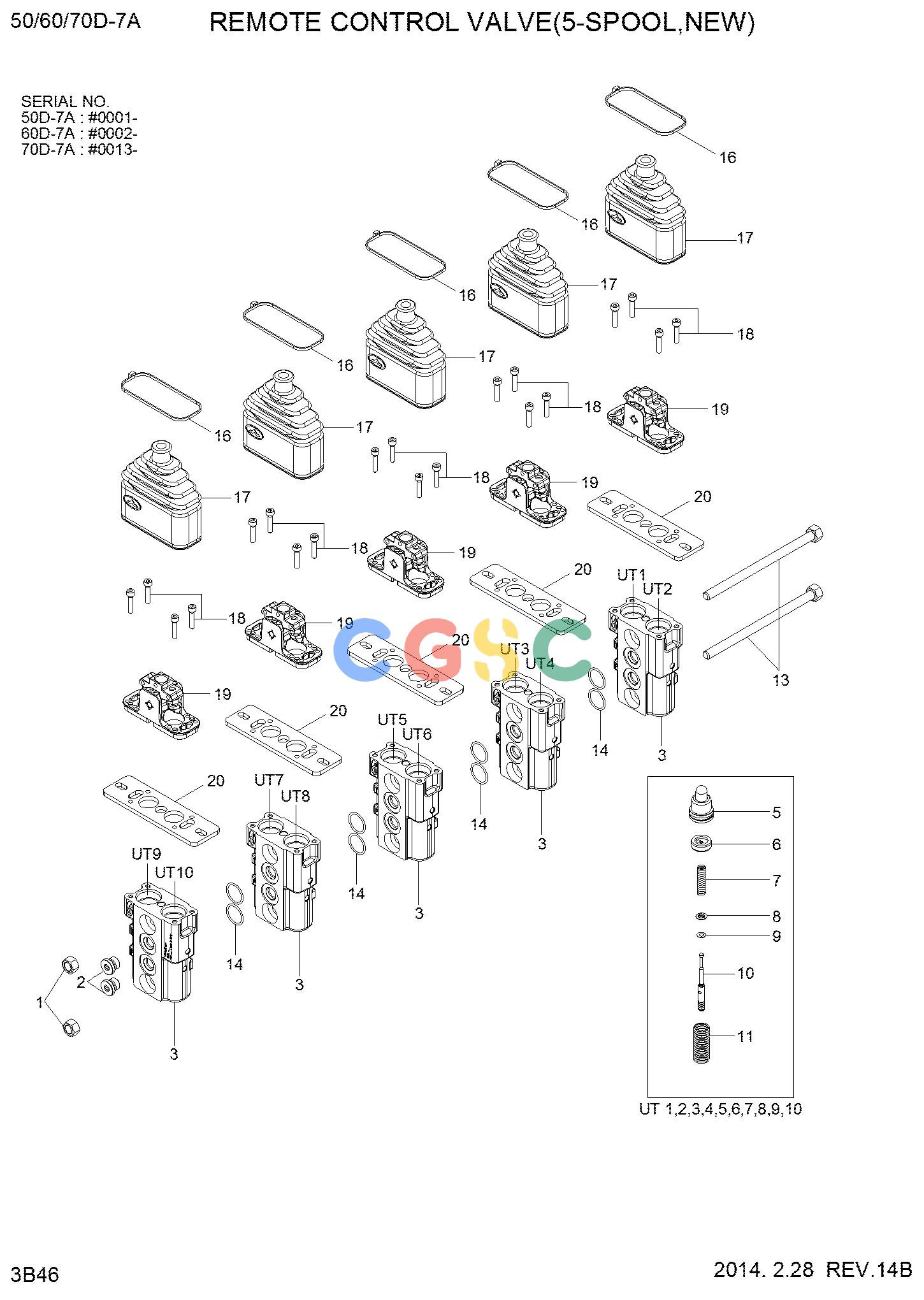

现代零件查询50/60/70D-7A REMOTE CONTROL VALVE (5-SPOOL,NEW)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
496 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
34FT-06000
|
[1] |
RCV
|
|
| . |
34FT-06000
|
[1] |
RCV
|
|
| . |
34FT-06000
|
[1] |
RCV
|
|
| 1. |
ZTAL-00111
|
[2] |
NUT
|
|
| 2. |
ZTAL-00110
|
[2] |
PLUG
|
|
| 3. |
ZTAL-00109
|
[5] |
BODY
|
|
| 4. |
ZTAL-00105
|
[1] |
KIT 1
|
|
| 5. |
ZTAL-00104
|
[10] |
PLUNGER KIT
|
|
| 6. |
ZTAL-00103
|
[10] |
SPRING GUIDE
|
|
| 7. |
ZTAL-00102
|
[10] |
METERING SPRING
|
|
| 8. |
ZTAL-00101
|
[10] |
SEEGER RING
|
|
| 9. |
ZTAL-00117
|
[10] |
SEEGER RING
|
|
| 10. |
ZTAL-00100
|
[10] |
ROD
|
|
| 11. |
ZTAL-00099
|
[10] |
SPRING
|
|
| 12. |
ZTAL-00122
|
[1] |
KIT 2
|
|
| 13. |
ZTAL-00121
|
[2] |
TIE ROD WITH NUT
|
|
| 14. |
ZTAL-00107
|
[8] |
O-RING
|
|
| 15. |
ZTAL-00112
|
[1] |
KIT 3
|
|
| 16. |
ZTAL-00118
|
[5] |
CLAMP
|
|
| 17. |
ZTAL-00114
|
[5] |
RUBBER BELLOW
|
|
| 18. |
ZTAL-00115
|
[20] |
SCREW
|
|
| 19. |
ZTAL-00116
|
[5] |
SUPPORT KIT
|
|
| 20. |
ZTAL-00119
|
[5] |
FLANGE
|
|
