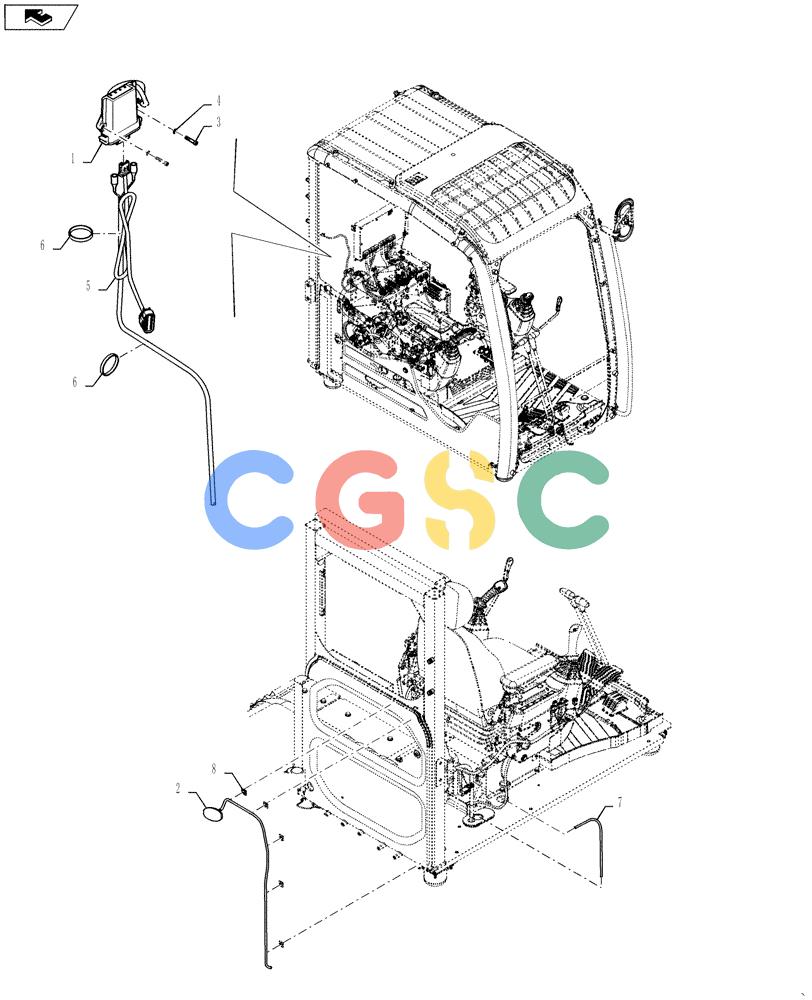

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.20) - EXCAVATOR TELEMATICS INSTALL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
759 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | 778834018 | [1] | KIT | SMDIA, Telematic Install, Incl 2 - 8 Superseded by part number: 47631547 |
| .. | 778834008 | [1] | KIT | SMDIA, Special Telematics Install, Incl 2 - 9 Superseded by part number: 47631554 |
| 1. | 84570393 | [1] | ECU | BURFactory - Install Superseded by part number: 47365596 |
| 1. | 47365596 | [1] | KIT | MKTDIA Std & Special - Install Superseded by part number: 47714488 |
| 2. | 84556851 | [1] | ANTENNA | MKT |
| 3. | 14304534 | [2] | SCREW,M5 x 30mm, Cl 10.9 | SM |
| 4. | 14496321 | [2] | WASHER | LEC |
| 5. | 84568818 | [1] | HARNESS | MKTFactory & DIA Std - Install |
| 5. | 47422920 | [1] | WIRE HARNESS | SMDIA - Special Install |
| 6. | 72951499 | [2] | CLIP | IMO Superseded by part number: PY01P01043D8 |
| 7. | 47401876 | [1] | CONDUIT | SM |
| 8. | 71451259 | [8] | BRACKET | SM |
| 9. | 87559156 | [1] | RELAY | SMDIA - Special Install Superseded by part number: YN24S00010P1 |
