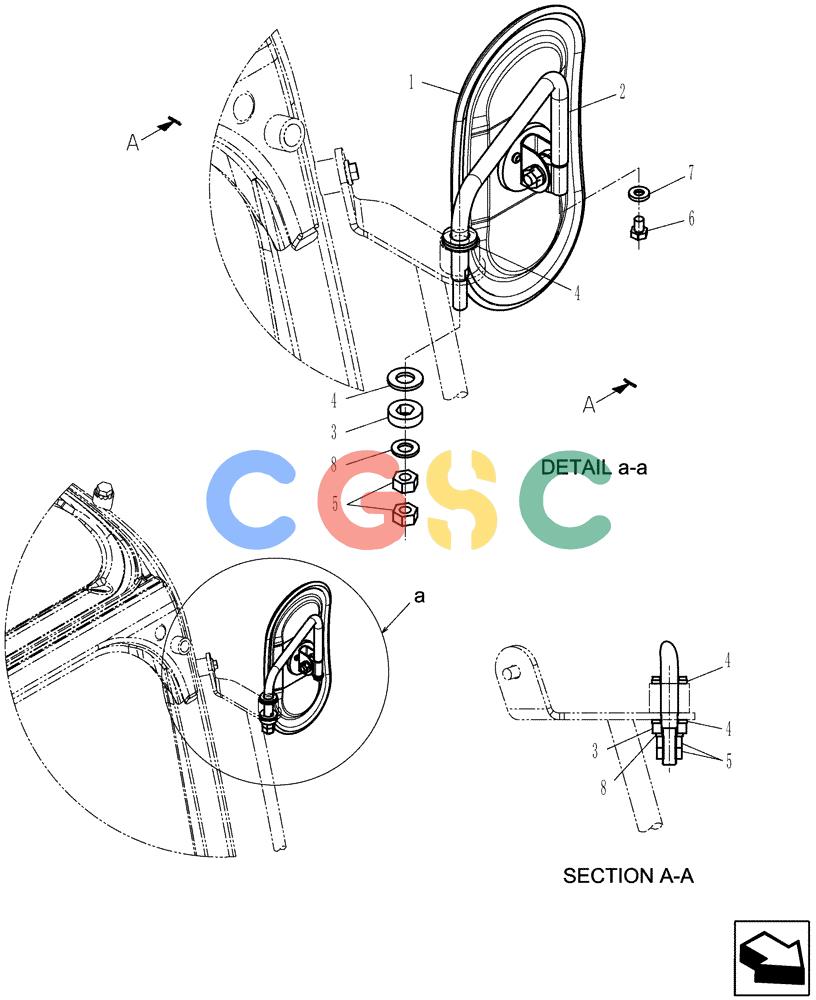

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.118.BM[01]) - MIRROR, ATTACHMENT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
209 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87612553 | [1] | REAR VIEW MIRROR | SM(PY02C01079P1) Superseded by part number: PY02C01079P1 |
| 2. | LQ52C01026P1 | [1] | STAY | SM |
| 3. | LQ52C01025P1 | [1] | WASHER | SM |
| 4. | LQ52C01021P1 | [2] | WASHER | SM |
| 5. | 11702921 | [2] | NUT,M12, Cl 10 | LEC(ZN18C12010) M12x1.75mm Superseded by part number: 17038425 |
| 6. | 16043034 | [1] | SCREW,M8 x 12mm, Cl 10.9 | LEC(ZS18C08012) M08x1.25x12mm Superseded by part number: 16043031 |
| 7. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC(ZW16H08000) ID 08 x OD 18 x Th 3.2mm Superseded by part number: 86624184 |
| 8. | 72951749 | [1] | WASHER | IMO(ZW16P12000) ID 13 x OD 24 x Th 2.5mm Superseded by part number: ZW16P12000 |
