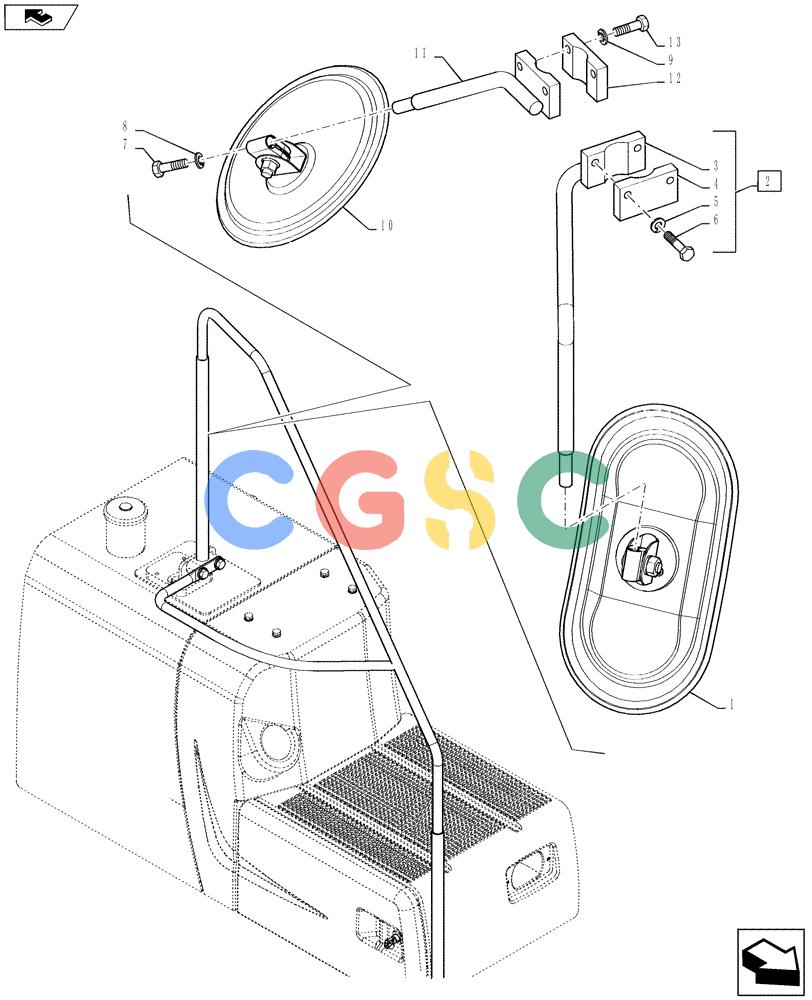

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.118.BM) - MIRROR, ATTACHMENT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
964 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87612553 | [1] | REAR VIEW MIRROR | SM Superseded by part number: PY02C01079P1 |
| 2. | YB52C01006F1 | [1] | ARM | SMAssembly, Incl 3 - 6 |
| 3. | YB52C01007P1 | [1] | STAY | KOB |
| 4. | YB52C01003P1 | [1] | CLAMP | KOB |
| 5. | 16044234 | [2] | BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9 | LEC Superseded by part number: 86625003 |
| 6. | 10516674 | [2] | LOCK WASHER,M8 | TTF Superseded by part number: 83990583 |
| 7. | 16043034 | [1] | SCREW,M8 x 12mm, Cl 10.9 | LEC Superseded by part number: 16043031 |
| 8. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 9. | 10516674 | [2] | LOCK WASHER,M8 | TTF Superseded by part number: 83990583 |
| 10. | 72950241 | [1] | MIRROR | IMO Superseded by part number: YT52C00006P1 |
| 11. | YB52C01001P1 | [1] | ARM | SM |
| 12. | YB52C01003P1 | [1] | CLAMP | KOB |
| 13. | 16044134 | [2] | BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9 | LEC Superseded by part number: 16044131 |
