神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.119.AA[01]) - GUARD INSTALL (BONNET) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
839 次

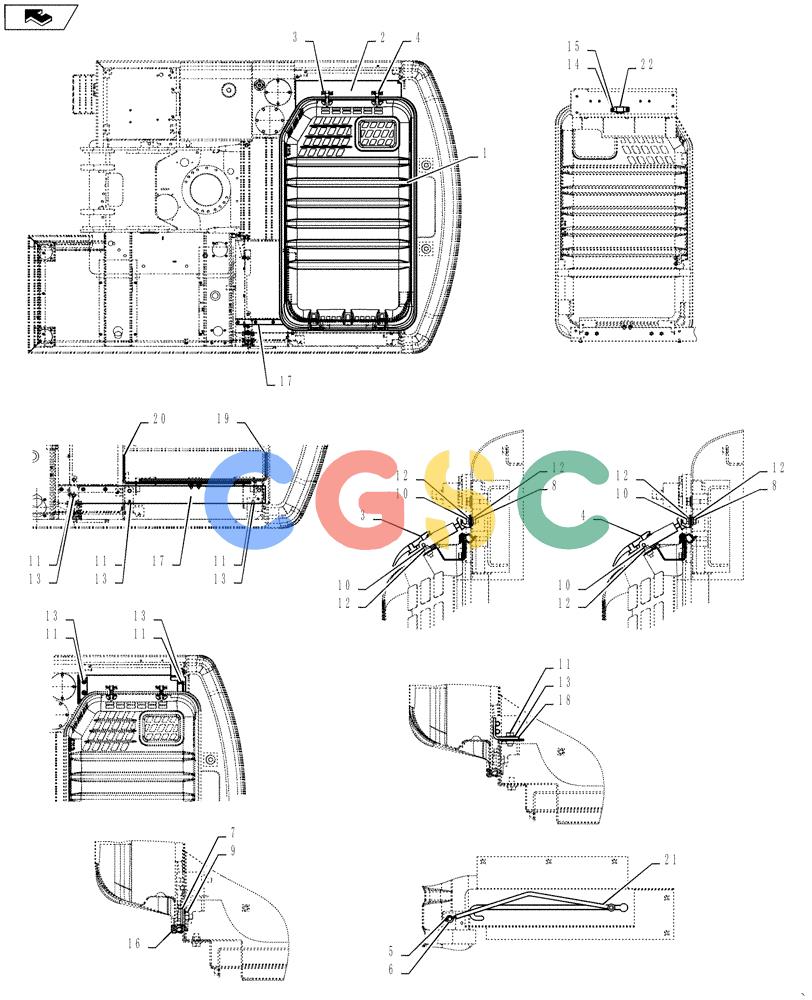

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB22C01059F1 | [1] | COVER | KOBAssembly |
| 2. | YB21C01290P1 | [1] | GUARD | KOBGuard |
| 3. | LC21C01811P2 | [1] | LATCH | SM(Supplied with Key); Replacement keys are not available |
| 4. | LC21C01812P2 | [1] | HANDLE | SM(Non-locking) Superseded by part number: LC21C01811P2 |
| 5. | 2419R9D6 | [1] | PIN | KOBND 16mm x 43.8mm Long |
| 6. | ZW16P16000 | [1] | WASHER | KOBID 17 x OD 30 x Th 3.0mm |
| 7. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 8. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 9. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 10. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 11. | ZM73C12025 | [12] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| 12. | ZW16H08000 | [12] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 13. | ZW16H12000 | [12] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 14. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 15. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 16. | YN21C03749P1 | [2] | SHIM | KOB-1.6 |
| 17. | YM21C01240P1 | [1] | BEAM | KOBBeam |
| 18. | YN21C01716P1 | [1] | PLATE | KOBNo longer included in kit, Purchase separately |
| 19. | YB21C01228P1 | [1] | SPRING | KOB Superseded by part number: 87361700 |
| 20. | YB21C01229P1 | [1] | SPRING | KOB Superseded by part number: 87361702 |
| 21. | YB21C01230P1 | [1] | STAY | KOBAssembly |
| 22. | YN21C03238P1 | [1] | PLATE | KOB |
