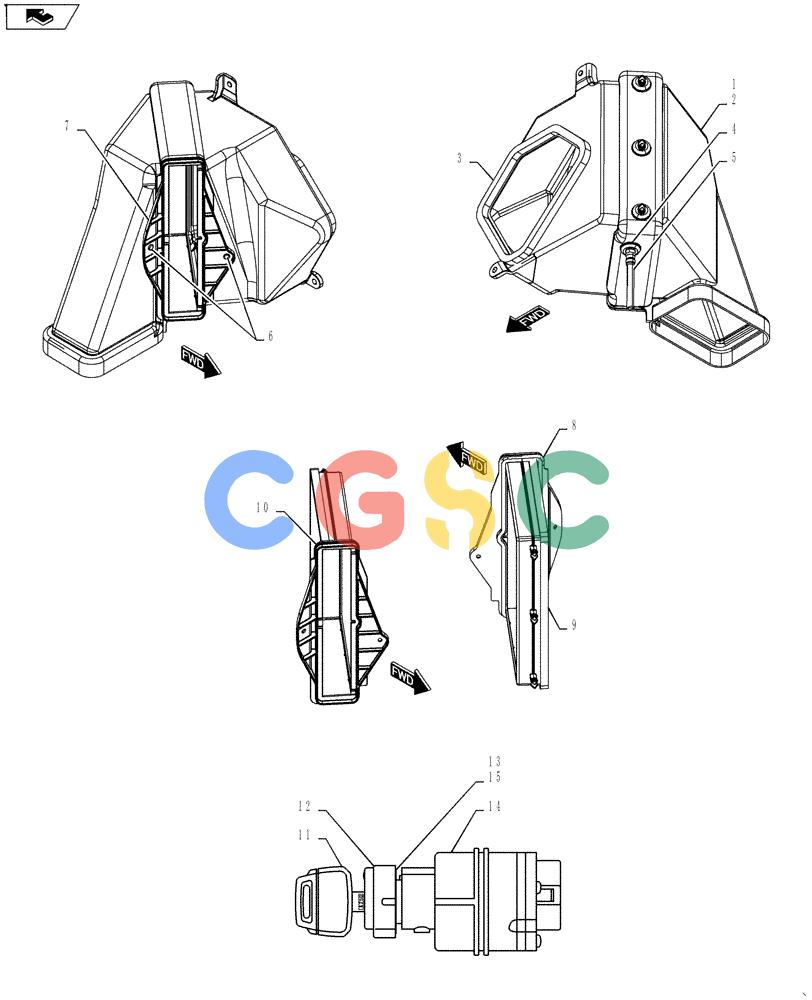

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.151.AF[05]) - CAB INTERIOR TRIM, AIR DUCT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN20M01821F1 | [1] | DUCT | KOBDuct Assembly Inc. 1-4 |
| 6. | YN17M01485P1 | [1] | RIVET | KOB |
| 7. | YN20M01817F2 | [1] | DUCT | KOBDuct Assembly, Inc. 7-10 |
| 11. | YN50S01010P1 | [1] | SET OF 2 KEYS,Kobelco Branded | KOBKey |
| 12. | YN50S00002S002 | [1] | NUT | KOBAssy. |
| 13. | YN50S00002S003 | [2] | WASHER | KOB |
| 14. | YN50S00002S004 | [1] | TOGGLE SWITCH | KOB |
| 15. | YN50S00002S005 | [1] | WASHER | KOB |
