神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-01-03[03]) - VALVE ASSY, CONTROL (YM30V00011F1) PAGE 3 OF 9 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
430 次

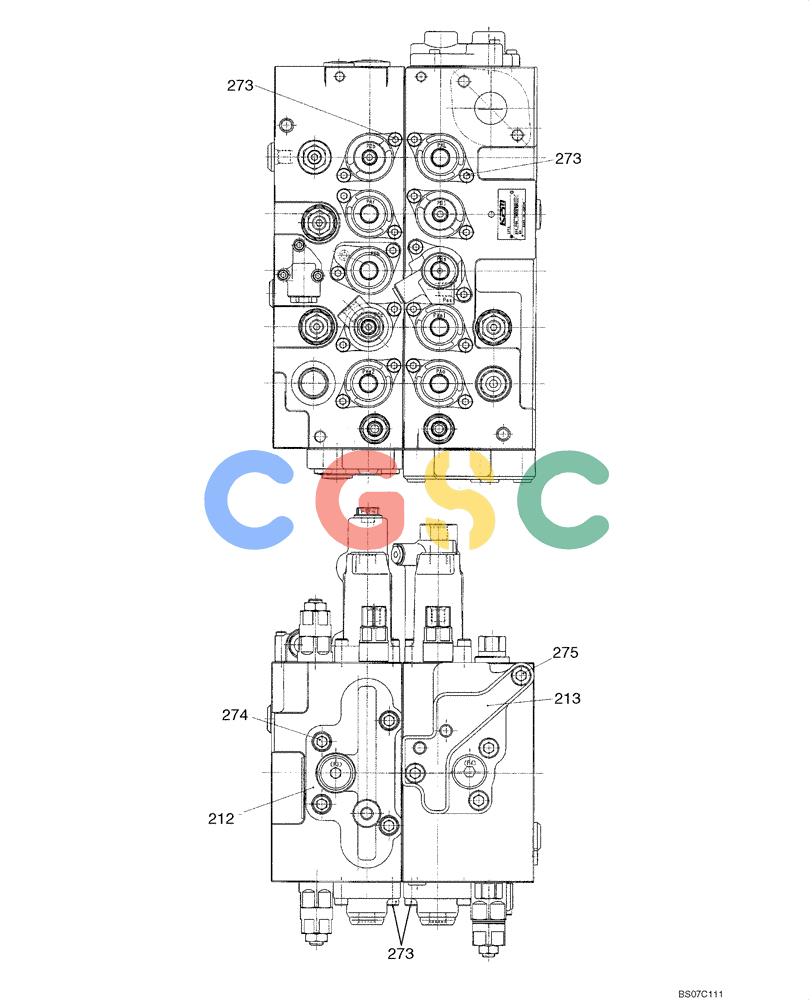

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM30V00011F1 | [1] | CONTROL VALVE | KOBAssembly, Incls. Figures (08-01-01) - (08-01-09) Superseded by part number: YM30V00011F2 |
| 212. | YN30V00079S212 | [1] | PLATE | KOB |
| 213. | YM30V00008S213 | [1] | PLATE | SM |
| 273. | ZS23C08025 | [40] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 274. | ZS23C12025 | [4] | CAPSCREW,Hex Socket Head, M12 x 52mm | KOBSCREW M12x1.75x25mm |
| 275. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
