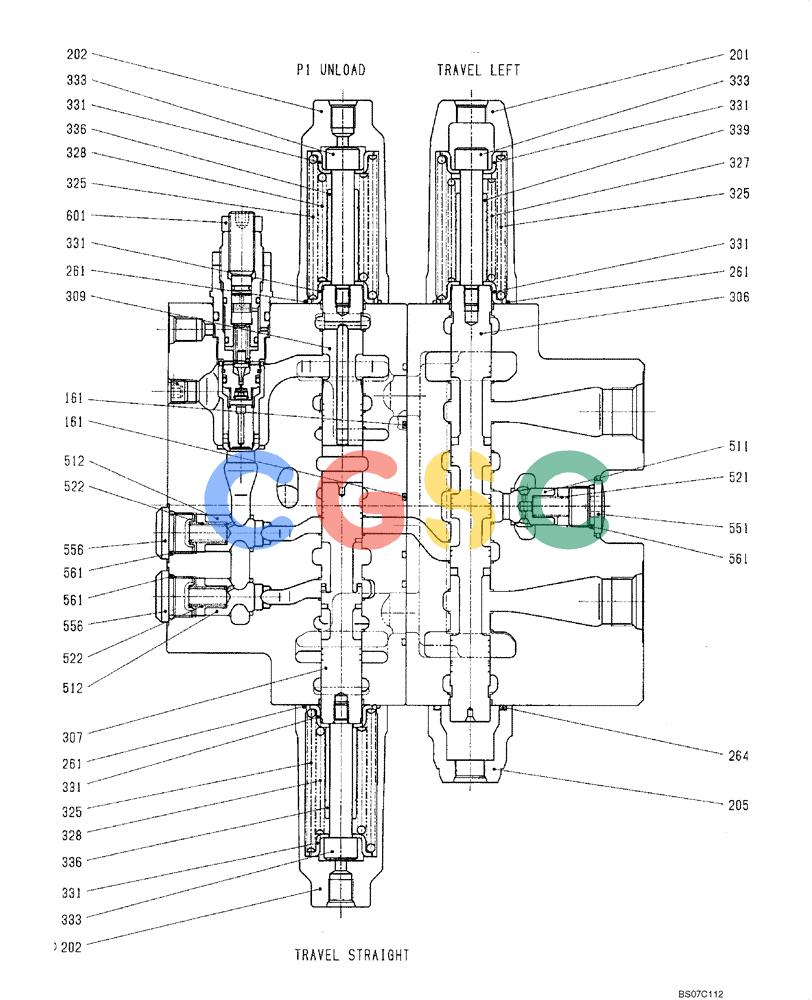

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-01-04[04]) - VALVE ASSY, CONTROL (YM30V00011F1) PAGE 4 OF 9 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1030 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM30V00011F1 | [1] | CONTROL VALVE | KOBAssembly, Incls. Figures (08-01-01) - (08-01-09) Superseded by part number: YM30V00011F2 |
| 161. | ZD12G03000 | [13] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 201. | YM30V00008S201 | [5] | GUARD | SMCover |
| 202. | YM30V00008S202 | [4] | GUARD | SMCover |
| 205. | YM30V00008S205 | [7] | GUARD | SMCover |
| 261. | 2436U1457S162 | [12] | O-RING,2mm Thk x 39.5mm ID, 90 Duro | KOB |
| 264. | ZD12G03500 | [8] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 306. | YM30V00011S306 | [2] | SPOOL | SMSpool, Travel |
| 307. | YM30V00011S307 | [1] | SPOOL | KOBSpool, P1 Unload Superseded by part number: YM30V00011R160 |
| 309. | YM30V00008S309 | [1] | PISTON | SMSpool, P1 Unload Superseded by part number: YM30V00008R180 |
| 325. | YM30V00008S325 | [6] | SPRING | SM |
| 327. | YM30V00008S327 | [2] | SPRING | SM |
| 328. | YM30V00008S328 | [3] | SPRING | SM |
| 331. | 2436U1265S332 | [24] | SPRING SEAT | KOB |
| 333. | 2436U1265S336 | [12] | BOLT | KOB |
| 336. | YM30V00008S336 | [6] | SEAL RETAINER | SMStopper |
| 339. | YM30V00008S339 | [5] | SEAL RETAINER | SMStopper |
| 511. | 2436U1265S511 | [11] | POPPET | KOB |
| 512. | YW30V00001S513 | [2] | POPPET | KOB |
| 521. | 2436U1265S521 | [11] | SPRING | KOB |
| 522. | YN30V00101S522 | [2] | SPRING | SM |
| 551. | YN30V00021S552 | [12] | PLUG | KOB |
| 556. | YW30V00001S556 | [5] | PLUG | KOB |
| 561. | ZD12P02000 | [18] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 601. | YN22V00001F3 | [1] | VALVE | KOBRelief -- See Figure 08-05 |
| K. | YM30V00011R150 | [1] | SPOOL | KOBKit, Travel Repair Contains 306x1, 325x1, 327x1, 331x2, 333x1, 339x1 |
| K. | YM30V00011R160 | [1] | KIT | KOBKit, Straight Trav. Repair Contains 307x1, 325x1, 328x1, 331x2, 333x1, 336x1 |
| K. | YM30V00008R180 | [1] | KIT | SMKit, P1 Unload Repair Contains 309x1, 325x1, 328x1, 331x2, 333x1, 336x1 |
