神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-02[00]) - VALVE ASSY, CONTROL (YB64H00037F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
732 次

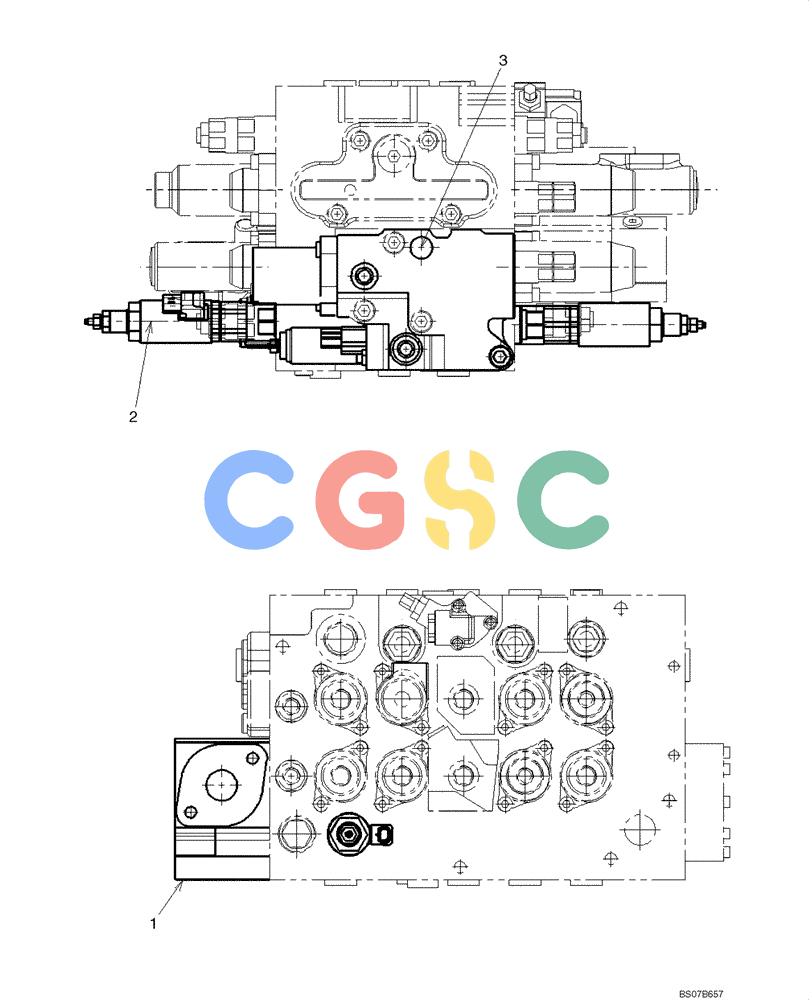

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB30V00018F1 | [1] | CONTROL VALVE | KOBSelector (See Figure 08-03) |
| 2. | YN22V00035F1 | [2] | SOLENOID | KOBRelief (See Figure 08-02-01) |
| 3. | YN64H01375D1 | [1] | PLUG | SMCap -- 10.0mm (Nylon), Used before 03/30/2007 Superseded by part number: YN64H01391D1 |
| 3. | YN64H01391D1 | [1] | CAP | KOB10.0mm Slotted Plastic (Nylon) Used after 03/30/2007 |
