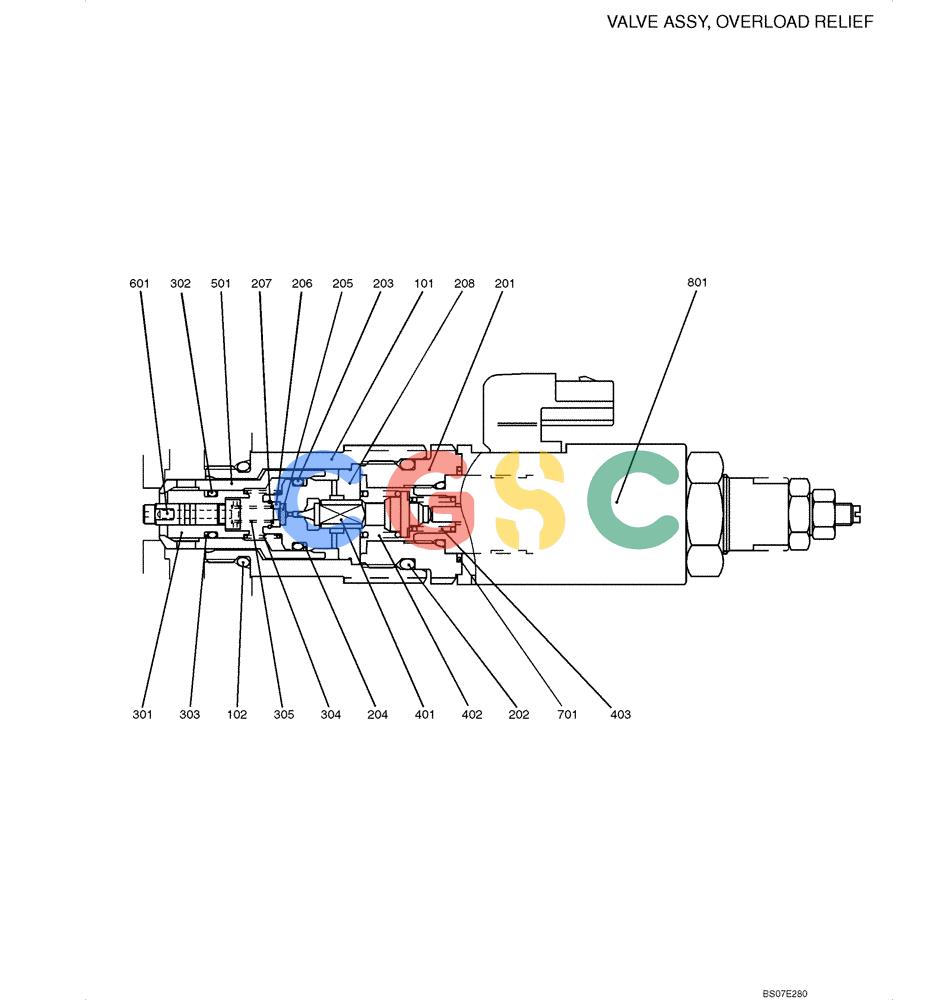

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-02-01[00]) - VALVE ASSEMBLY, OVERLOAD RELIEF (YN22V00035F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00035F1 | [1] | SOLENOID | KOBAssembly, Overload Relief |
| 101. | NA | [1] | NOT SERVICED | FORBody |
| 102. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 201. | NA | [1] | NOT SERVICED | FORPlug |
| 202. | NA | [1] | NOT SERVICED | FORO-Ring |
| 203. | NA | [1] | NOT SERVICED | FORO-Ring |
| 204. | NA | [1] | NOT SERVICED | FORRing, Back Up |
| 205. | NA | [1] | NOT SERVICED | FORFilter |
| 206. | NA | [1] | NOT SERVICED | FORStopper |
| 207. | NA | [1] | NOT SERVICED | FORC-Ring |
| 208. | NA | [1] | NOT SERVICED | FORSheet |
| 301. | NA | [1] | NOT SERVICED | FORPlunger |
| 302. | NA | [1] | NOT SERVICED | FORO-Ring |
| 303. | NA | [1] | NOT SERVICED | FORRing, Back Up |
| 304. | NA | [1] | NOT SERVICED | FORSpring |
| 305. | NA | [1] | NOT SERVICED | FORSpring |
| 401. | NA | [1] | NOT SERVICED | FORPoppet |
| 402. | NA | [1] | NOT SERVICED | FORSpring |
| 403. | NA | [1] | NOT SERVICED | FORSpring |
| 501. | NA | [1] | NOT SERVICED | FORSheet |
| 601. | NA | [1] | NOT SERVICED | FORPiston |
| 701. | YN22V00035S701 | [1] | O-RING | SM |
| 801. | NA | [1] | NOT SERVICED | FORSolenoid |
