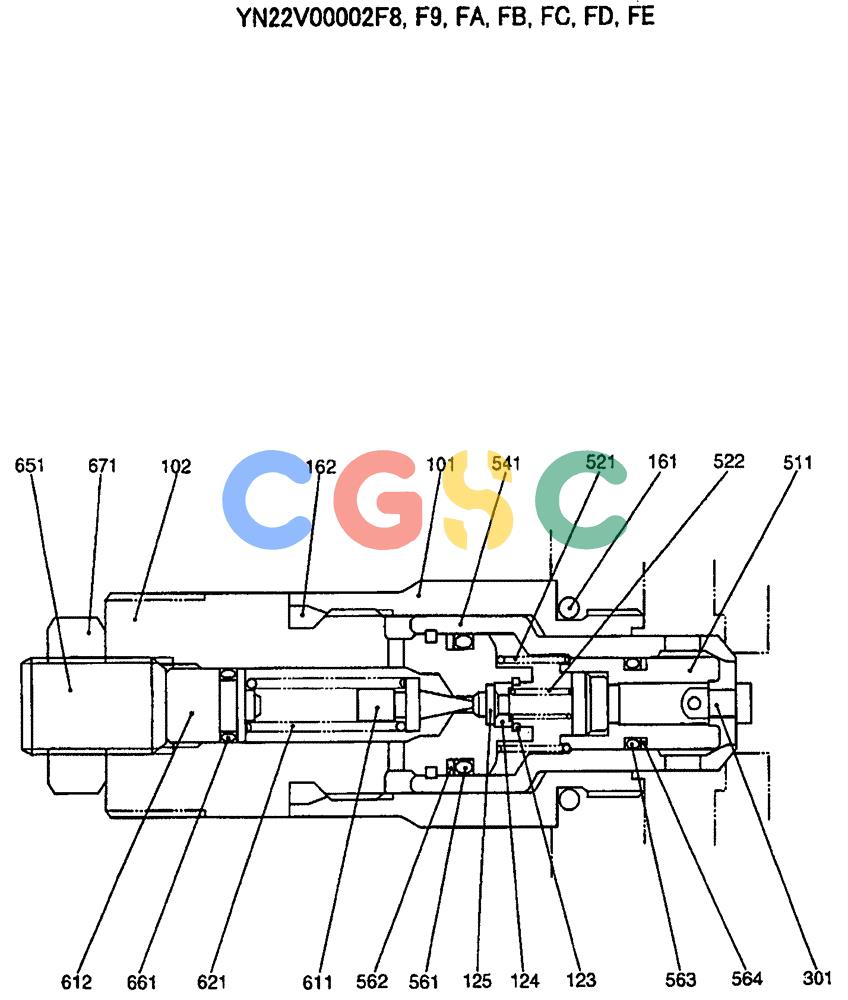

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-26[00]) - VALVE ASSEMBLY, PORT RELIEF (YN22V00002F9) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
492 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00002F9 | [1] | VALVE | KOBAssembly, Port Relief |
| 101. | NA | [1] | NOT SERVICED | FORBody |
| 102. | NA | [1] | NOT SERVICED | FORPlug |
| 123. | NA | [1] | NOT SERVICED | FORRing |
| 124. | NA | [11] | NOT SERVICED | FORStopper |
| 125. | NA | [1] | NOT SERVICED | FORFilter |
| 161. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 162. | ZD12P02240 | [11] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 301. | NA | [1] | NOT SERVICED | FORPiston |
| 511. | NA | [1] | NOT SERVICED | FORPlunger |
| 521. | YN22V00001S521 | [1] | SPRING | KOB |
| 522. | YN22V00002S522 | [1] | SPRING | KOB |
| 541. | NA | [1] | NOT SERVICED | FORSeat |
| 561. | YN22V00001S561 | [1] | O-RING | KOB Superseded by part number: HD16P01600G1 |
| 562. | YN22V00001S562 | [1] | BACK-UP RING | KOB |
| 563. | YN22V00002S563 | [1] | O-RING | KOB Superseded by part number: HD16P01000G1 |
| 564. | YN22V00002S564 | [1] | RING | KOBBack-Up |
| 611. | NA | [1] | NOT SERVICED | FORPoppet |
| 612. | YN22V00002S612 | [1] | SPRING SEAT | KOB |
| 621. | 2436R750S512 | [1] | SPRING | KOB |
| 651. | YN22V00002S651 | [1] | ADJUSTMENT SCREW | KOB |
| 661. | ZD12P00800 | [1] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 671. | YN22V00001S671 | [1] | LOCK NUT | KOBM14x1.50mm |
