神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-38[00]) - FUEL PUMP (101660420101) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
232 次

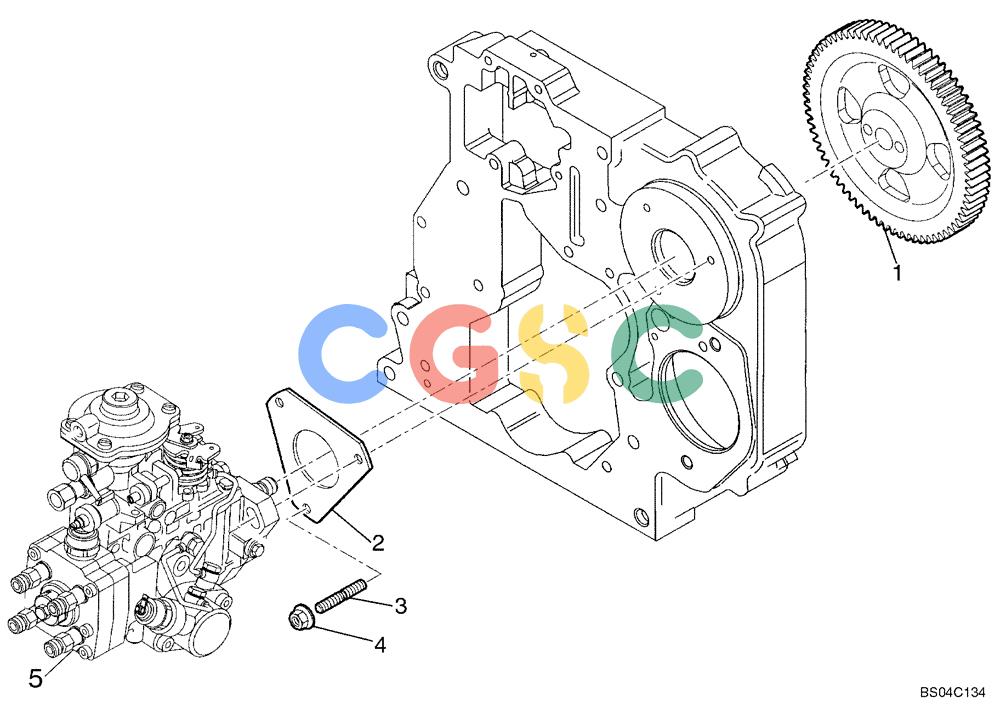

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4896616 | [1] | DRIVEN GEAR | TOR |
| 2. | 2852885 | [1] | GASKET,1.2mm Thk | TOR Superseded by part number: 504083433 |
| 3. | 2852347 | [3] | STUD | TORM08x1.25x41mm Superseded by part number: 504065125 |
| 4. | 4899003 | [3] | FLANGE NUT,M8 x 1.25 | TORM08x1.25mm Superseded by part number: 9804277 |
| 5. | REF | [1] | INSTRUCTION | NHSee Figure 09-36 |
