神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-39[00]) - INJECTION EQUIPMENT - PIPING (101580460001) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1000 次

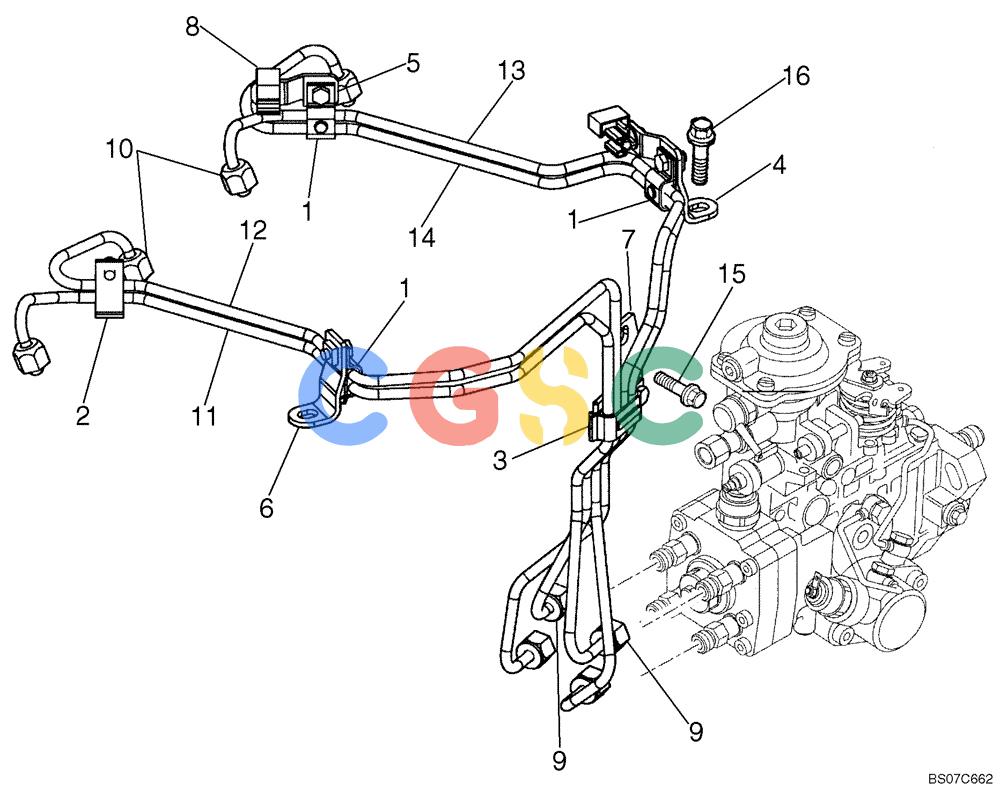

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2852535 | [1] | KIT | TORFuel Injection Supply Pipe Assembly; Inclues Refs. 1 - 14 Superseded by part number: 504037873 |
| 1. | 2853377 | [3] | BRACKET | TOR |
| 2. | 2853378 | [1] | BRACKET | TOR |
| 3. | 2853379 | [1] | BRACKET | TOR |
| 4. | 2853380 | [1] | BRACKET | TOR |
| 5. | 2853381 | [1] | BRACKET | TOR |
| 6. | 2853382 | [1] | BRACKET | TOR |
| 7. | 2853383 | [1] | BRACKET | TOR |
| 8. | 2853384 | [2] | CLIP | TOR |
| 9. | NSS | [4] | NOT SOLD SEPARAT | CONPipe Socket |
| 10. | NSS | [4] | NOT SOLD SEPARAT | CONPipe Socket |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONFuel Injector Supply Pipe |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONFuel Injector Supply Pipe |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONFuel Injector Supply Pipe |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONFuel Injector Supply Pipe |
| 15. | 4896884 | [1] | BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9 | TORM08x1.25x16mm |
| 16. | 4899039 | [2] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TORM08x1.25x25mm |
