神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-40[00]) - FUEL FILTER (101230470001) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
864 次

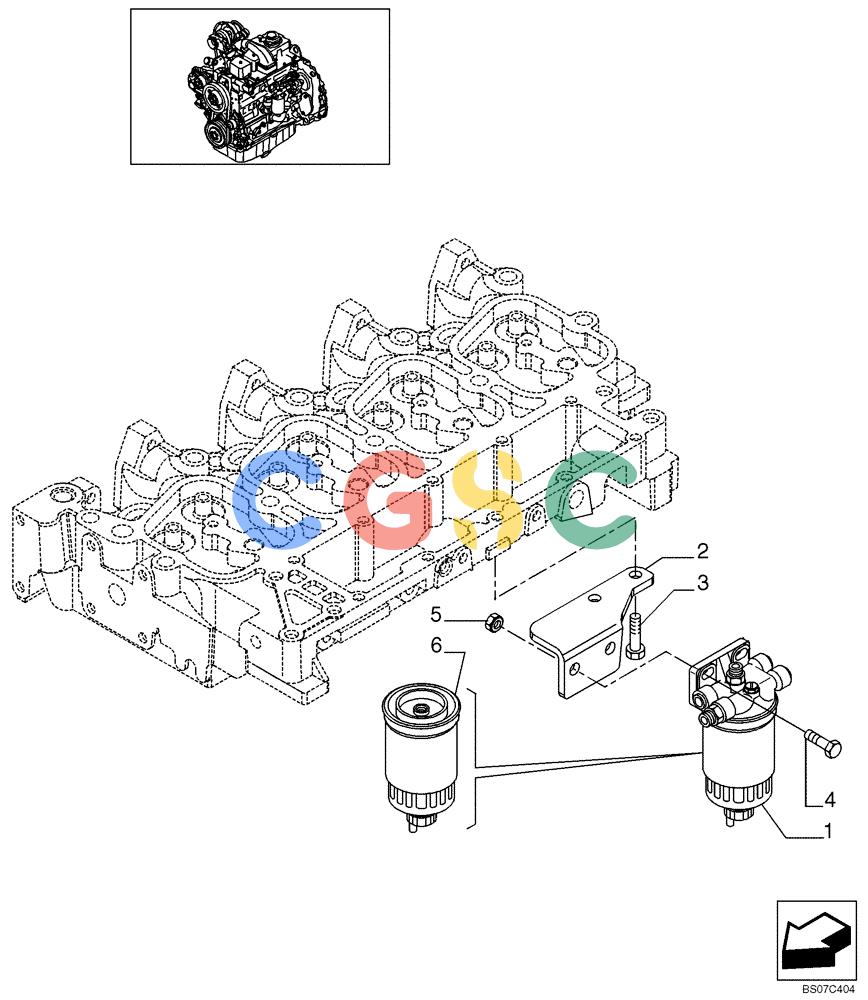

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853394 | [1] | FUEL FILTER | TORAssembly |
| 2. | 2855103 | [1] | SUPPORT | TOR Superseded by part number: 504168524 |
| 3. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BASM08x1.25x16mm |
| 4. | 4899849 | [2] | SCREW,Hex, M10 x 1.5 x 35mm | TORM10x1.50x35mm Superseded by part number: 16587325 |
| 5. | 4895166 | [2] | FLANGE NUT,M10, 1.50mm Pitch, Cl 10 | BASM10x1.50mm |
| 6. | 87646724 | [1] | FUEL FILTER | KOBElement, See Figure 01-01 Superseded by part number: 84565884 |
