神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-15[02]) - POWER TAKE OFF COUPLING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
447 次

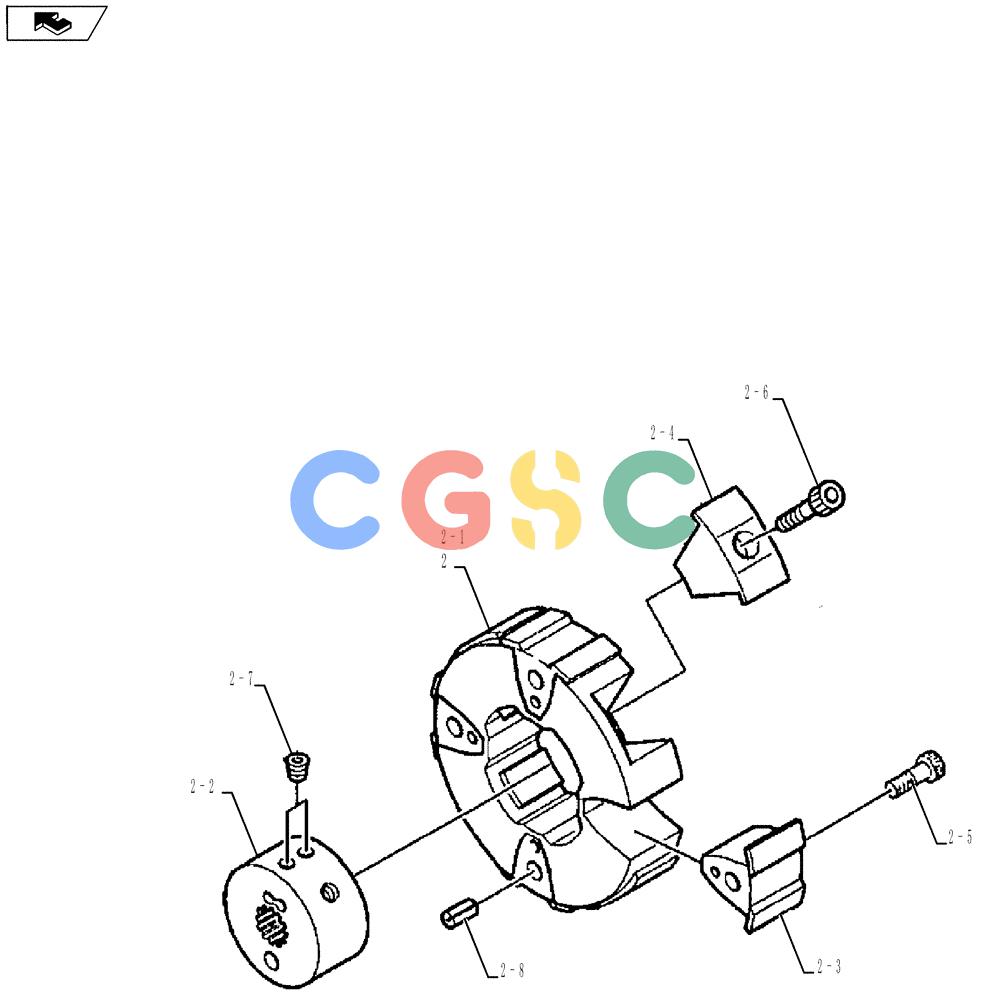

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YM30P01007F1 | [1] | COUPLING | KOBIncls. Refs. 2-1 - 2-8 |
| 2-1. | YM30P01008S001 | [1] | INSULATING PANEL | KOBPAD, RUBBER |
| 2-2. | YM30P01007S002 | [1] | HUB | KOBHUB |
| 2-3. | YM30P01008S003 | [4] | COUPLING | KOBINSERT |
| 2-4. | YM30P01008S004 | [4] | INSERT | KOB |
| 2-5. | YM30P01008S005 | [4] | SCREW | KOB |
| 2-6. | YM30P01008S006 | [4] | SCREW | KOB |
| 2-7. | YM30P01008S007 | [2] | SCREW | KOBSET |
| 2-8. | ZP26D05010 | [4] | PIN | KOBRoll -- OD 05 x 10mm Long |
