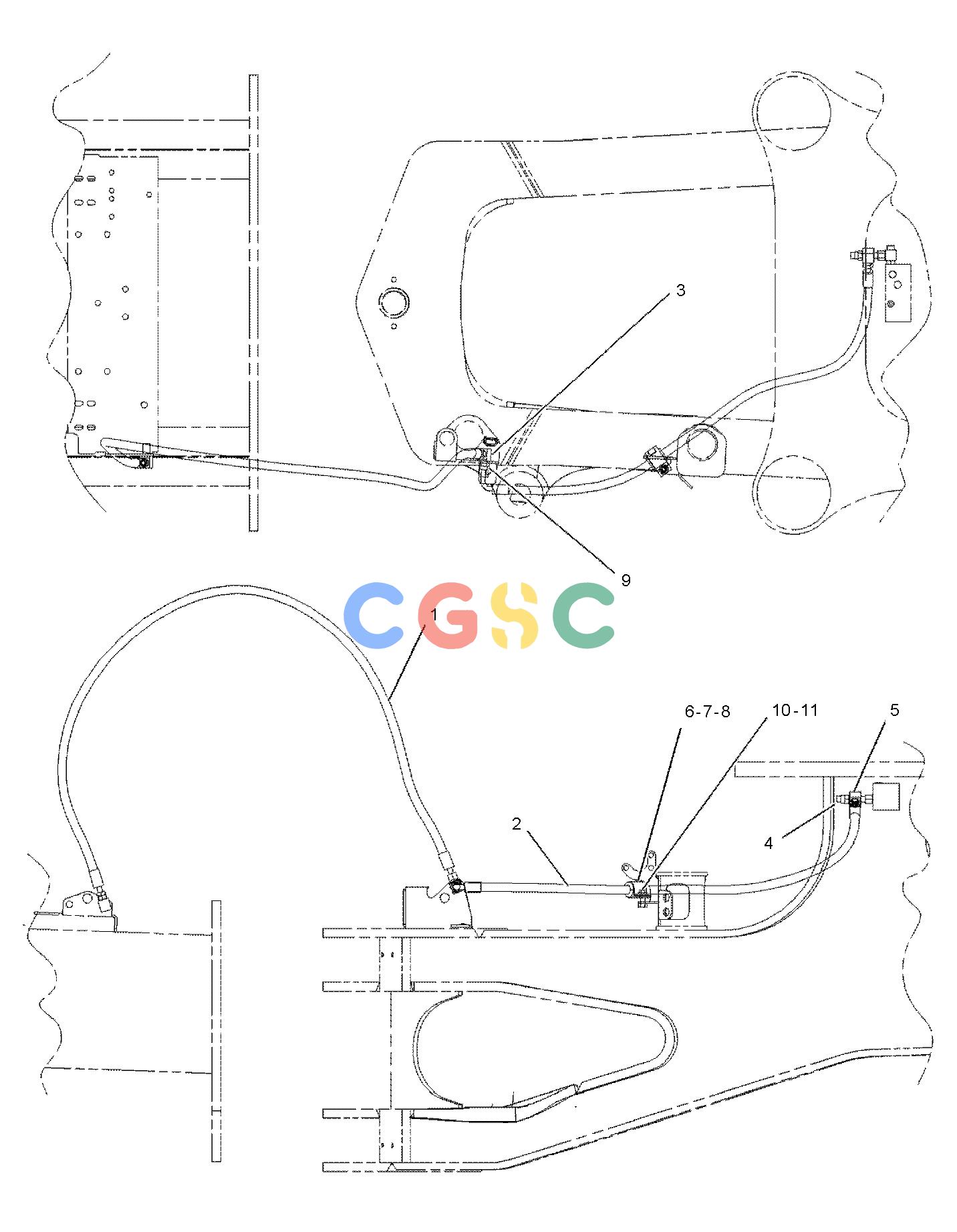

卡特零件查询（735） 152-6939: LINES GP-PARKING BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
430 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 160-6013I | [1] | HOSE AS | |
| 2. | 193-9083I | [1] | HOSE AS | |
| 3. | 148-8375 | [1] | ELBOW AS | |
| | 6V-8981 | [1] | ELBOW | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| 4. | 148-8415 | [1] | REDUCER AS(ORFS) | |
| | 6V-8936 | [1] | REDUCER | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 5. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| 6. | 5P-7464 | [1] | CLIP(SLOT) | |
| 7. | 5P-7465 | [1] | CLIP(TAB) | |
| 8. | 6V-7359 | [1] | GROMMET(25-MM ID, 37-MM OD) | |
| 9. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 10. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 11. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
