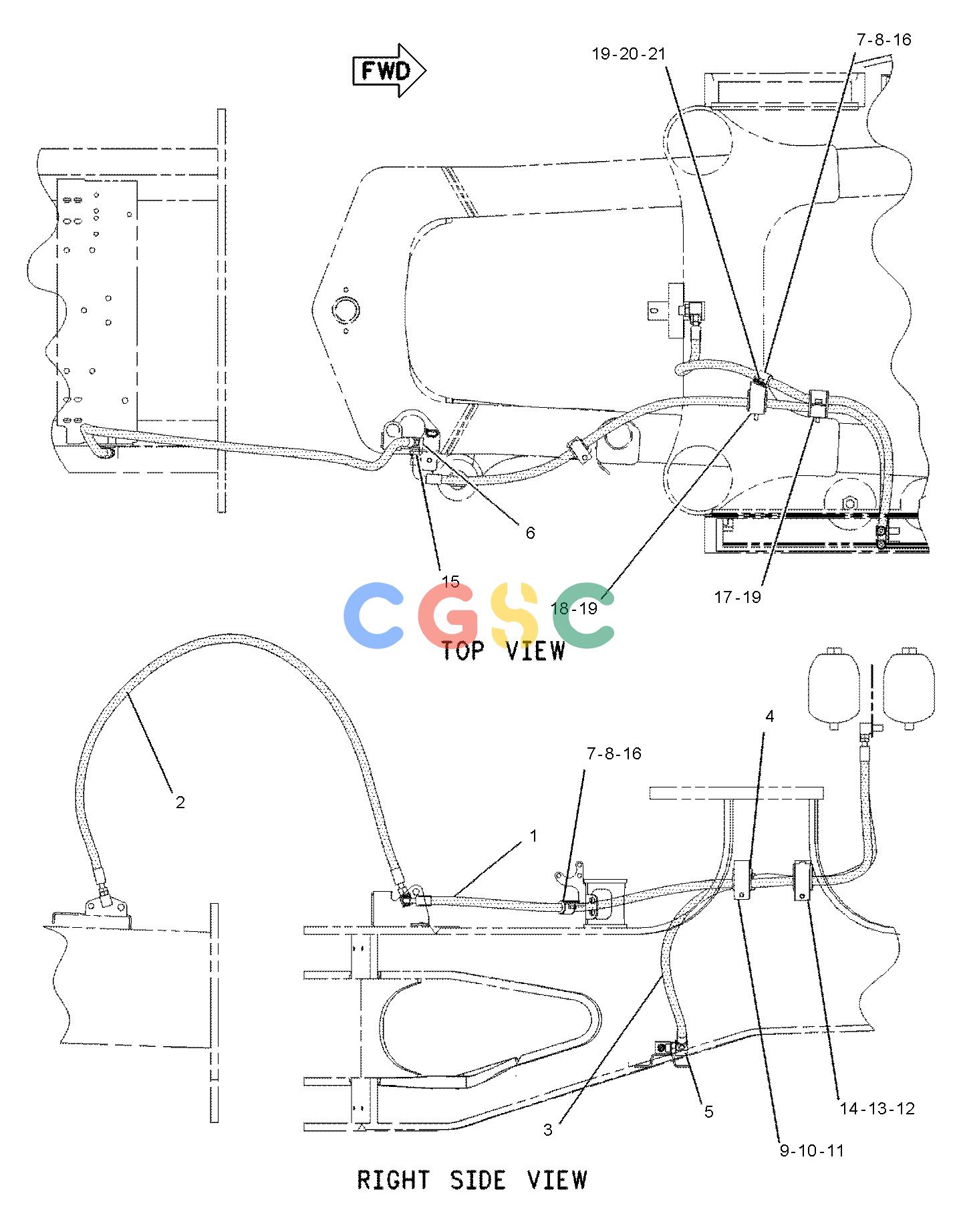

卡特零件查询（735） 152-6941: LINES GP-SERVICE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
108 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 193-0849I | [1] | HOSE AS | |
| 2. | 204-5696I | [1] | HOSE AS | |
| 3. | 207-9519I | [1] | HOSE AS | |
| 4. | 219-1393 | [1] | BRACKET | |
| 5. | 148-8382 | [1] | ELBOW AS | |
| | 8T-0404 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 6. | 169-7404 | [1] | ELBOW AS | |
| | 6V-8982 | [1] | ELBOW | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 7. | 5P-7464 | [2] | CLIP(SLOT) | |
| 8. | 5P-7465 | [2] | CLIP(TAB) | |
| 9. | 5P-7470 | [1] | CLIP(SLOT) | |
| 10. | 5P-7471 | [1] | CLIP(TAB) | |
| 11. | 5P-7703 | [1] | GROMMET(52-MM ID) | |
| 12. | 6V-1867 | [1] | CLIP(SLOT) | |
| 13. | 6V-1868 | [1] | CLIP(TAB) | |
| 14. | 6V-1869 | [1] | GROMMET(65-MM ID) | |
| 15. | 6V-9170 | [1] | NUT-BULKHEAD(1-14-THD) | |
| 16. | 8T-2920 | [2] | GROMMET(27-MM ID) | |
| 17. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 18. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 19. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 20. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 21. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
