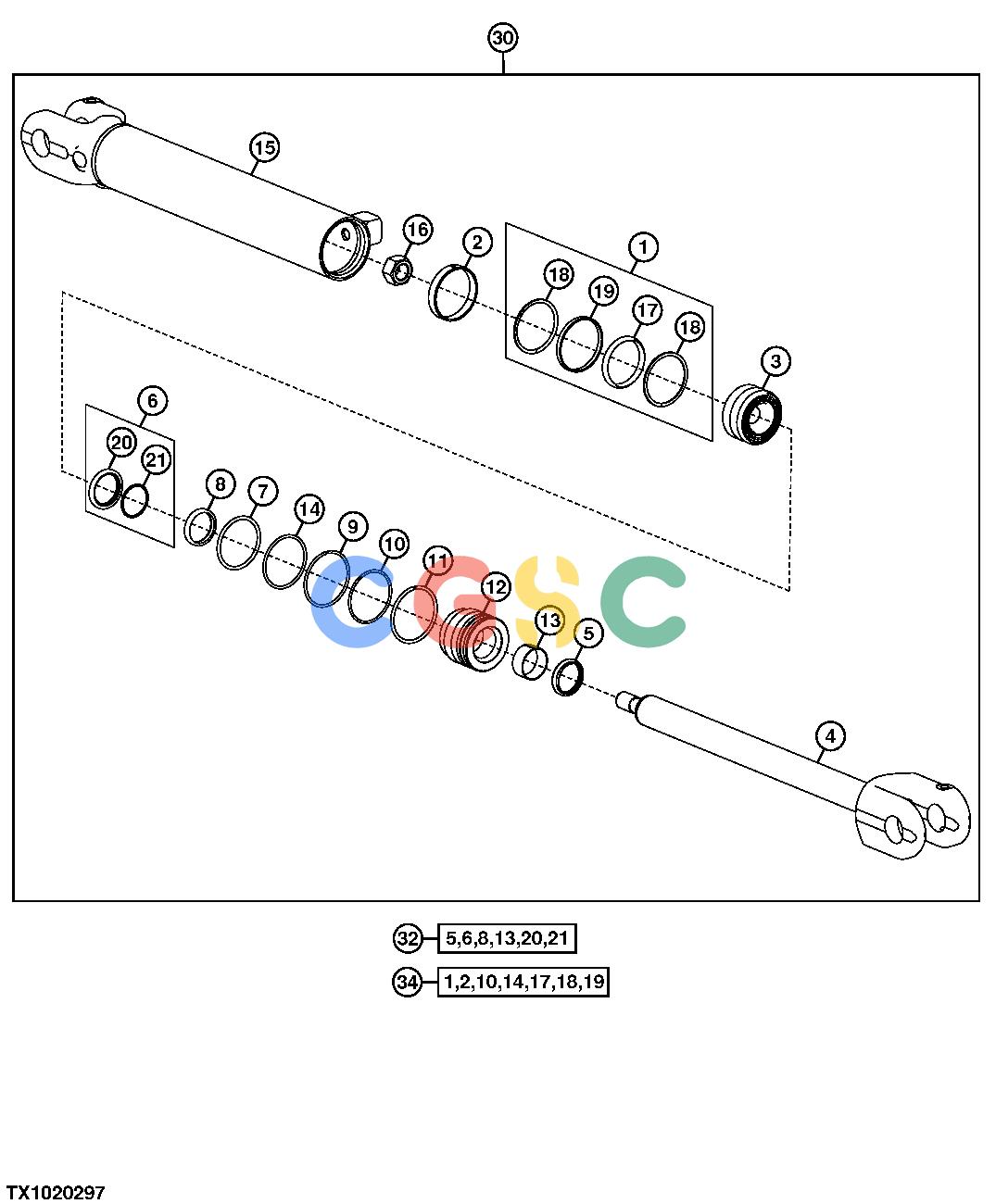

约翰迪尔零件查询1400 - AXLE Steering Cylinder Components, StandardEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RE20344
|
[1] |
Seal
|
|
| 2. |
R81776
|
[1] |
Wear Ring
|
|
| 3. |
R82090
|
[1] |
Piston
|
|
| 4. |
AH135248
|
[1] |
Hydraulic Cylinder Rod
|
|
| 5. |
AH146557
|
[1] |
Seal
|
|
| 6. |
AH146561
|
[1] |
Seal
|
|
| 7. |
F1430R
|
[1] |
O-Ring
|
|
| 8. |
H152203
|
[1] |
Seal
|
|
| 9. |
H180103
|
[1] |
Snap Ring
|
|
| 10. |
H181114
|
[1] |
O-Ring
|
|
| 11. |
H206859
|
[1] |
Snap Ring
|
|
| 12. |
H208631
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 13. |
H208987
|
[1] |
Wear Ring
|
|
| 14. |
R79101
|
[1] |
Back-Up Ring
|
|
| 15. |
........
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 16. |
H170538
|
[1] |
Nut
|
|
| 17. |
........
|
[1] |
Seal
|
|
| 18. |
........
|
[2] |
Ring
|
|
| 19. |
........
|
[1] |
Seal
|
|
| 20. |
........
|
[1] |
Seal
|
|
| 21. |
........
|
[1] |
Seal
|
|
| 30. |
AH213303
|
[1] |
Hydraulic Cylinder
|
|
| 32. |
AH210484
|
[1] |
Hydraulic Cylinder Kit
|
|
| 34. |
AH212096
|
[1] |
Hydraulic Cylinder Kit
|
|
