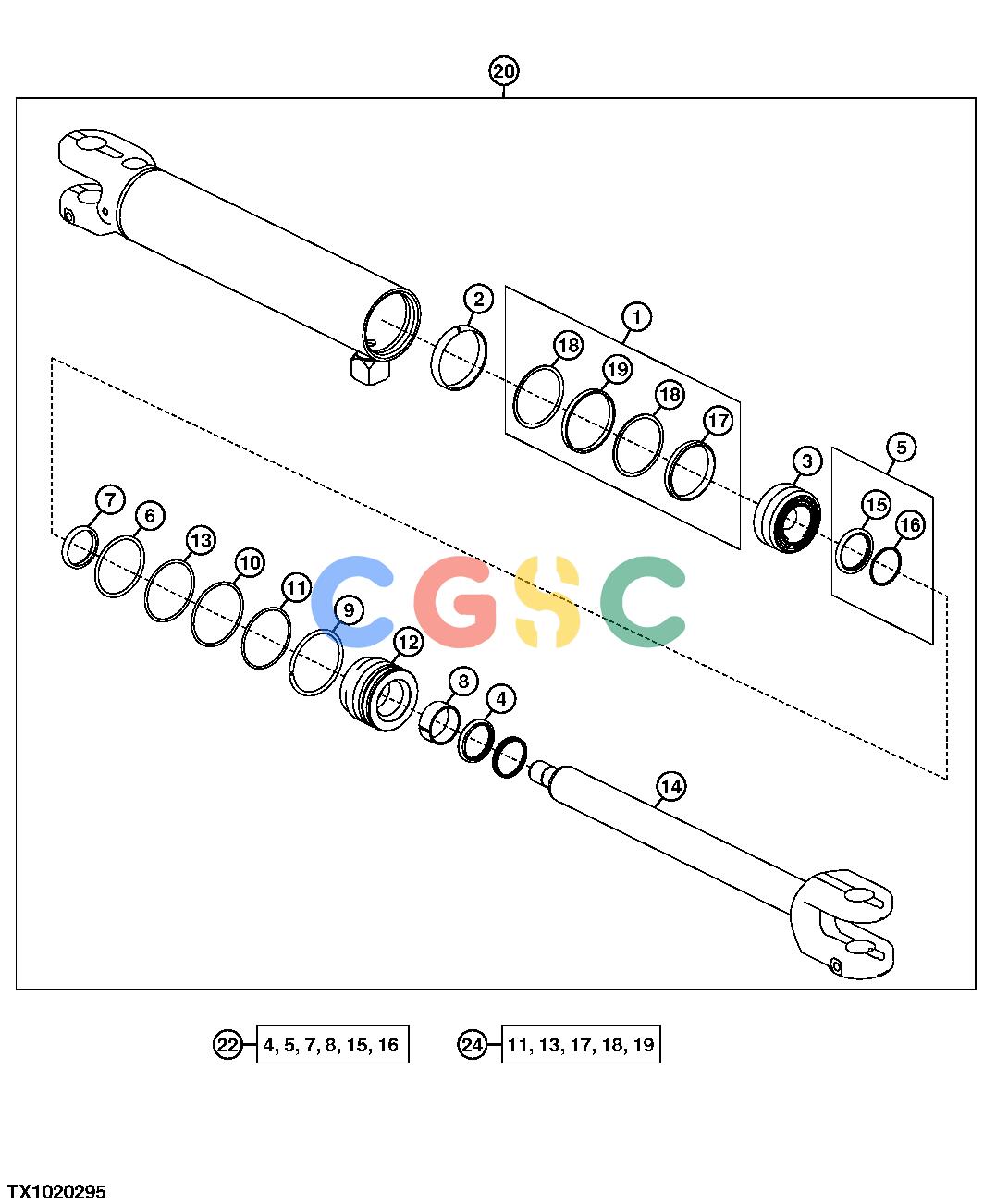

约翰迪尔零件查询1400 - AXLE Steering Cylinder Components, LargeEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
997 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RE20343
|
[1] |
Seal
|
|
| 2. |
R81775
|
[1] |
Wear Ring
|
|
| 3. |
R93028
|
[1] |
Piston
|
|
| 4. |
AH146558
|
[1] |
Seal
|
|
| 5. |
AH146562
|
[1] |
Seal
|
|
| 6. |
F950R
|
[1] |
O-Ring
|
|
| 7. |
H152204
|
[1] |
Seal
|
|
| 8. |
H152795
|
[1] |
Wear Ring
|
|
| 9. |
H180080
|
[1] |
Snap Ring
|
|
| 10. |
H180094
|
[1] |
Snap Ring
|
|
| 11. |
H210686
|
[1] |
O-Ring
|
|
| 12. |
H210826
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 13. |
R81862
|
[1] |
Back-Up Ring
|
|
| 14. |
AH219913
|
[1] |
Rod
|
|
| 15. |
H155658
|
[1] |
Seal
|
|
| 16. |
H155659
|
[1] |
Back-Up Ring
|
|
| 17. |
........
|
[1] |
Seal
|
|
| 18. |
........
|
[2] |
Back-Up Ring
|
|
| 19. |
........
|
[1] |
Seal
|
|
| 20. |
AH219905
|
[1] |
Hydraulic Cylinder
|
|
| 22. |
AH149814
|
[1] |
Hydraulic Cylinder Kit
|
|
| 24. |
AH212101
|
[1] |
Hydraulic Cylinder Kit
|
|
