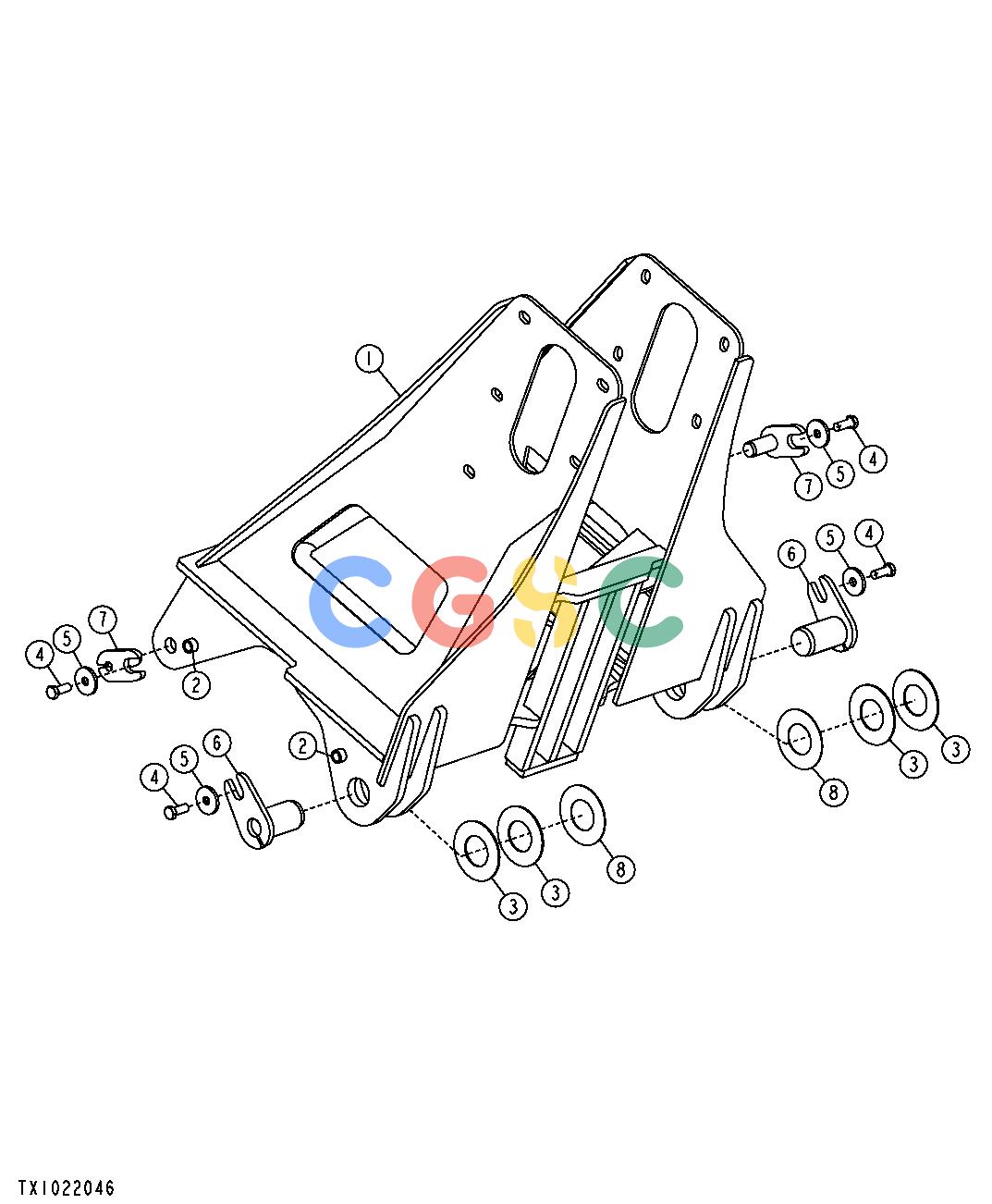

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT193131 | [1] | Arch | (LARGE ARCH) (CONVENIENCE ASSEMBLY) |
| 2. | 28H3401 | [4] | Spacer | 0.742" X 1.050" X 5/8" |
| 3. | T140731 | [4] | Washer | 64.500 X 126 X 3 MM (2.539" X 4.961" X 0.118") |
| 4. | 19M7488 | [4] | Cap Screw | M16 X 40 |
| 5. | T146246 | [4] | Washer | |
| 6. | AT165898 | [2] | Pin | |
| 7. | AT149974 | [2] | Pin Fastener | |
| 8. | T143992 | [2] | Washer | 63 X 126 X 1.600 MM (2.480" X 4.961" X 1/16") |
