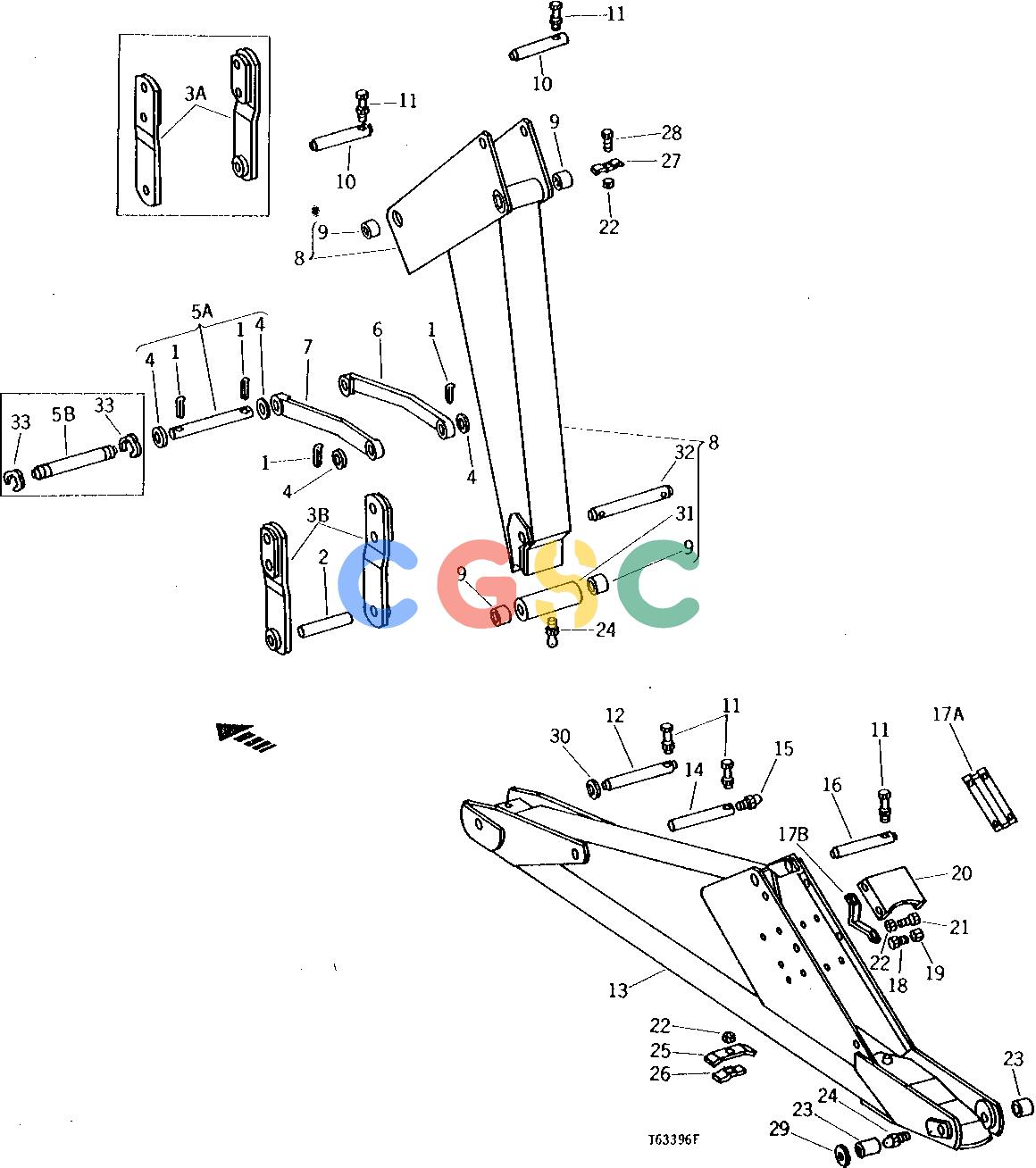

约翰迪尔零件查询92 - BACKHOE BOOMS AND DIPPERSTICKS FOR 10-FOOT AND 12-FOOT BACKHOES [A14]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
599 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
11H221
|
[4] |
Cotter Pin
|
|
| 2. |
28H2239
|
[1] |
Spacer
|
|
| 3A. |
AU40039
|
[2] |
|
|
| 3B. |
AU41933
|
[2] |
Link
|
|
| 4. |
U11649
|
[4] |
Washer
|
|
| 5A. |
AU13556
|
[1] |
Pin Fastener
|
|
| 5B. |
T61038
|
[1] |
Pin Fastener
|
|
| 6. |
T67895
|
[1] |
Link
|
|
| 7. |
T67896
|
[1] |
Link
|
|
| 8. |
AU44003
|
[1] |
Dipperstick
|
|
| 8. |
AU40272
|
[1] |
Dipperstick
|
|
| 9. |
U10666
|
[4] |
Bushing
|
|
| 10. |
U15822
|
[2] |
Pin
|
|
| 11. |
19H1820
|
[5] |
Cap Screw
|
|
| 11. |
BP12214
|
[5] |
Lock Nut
|
|
| 12. |
U41530
|
[1] |
Pin
|
|
| 13. |
AU41020
|
[1] |
Bushing
|
|
| 13. |
AU41018
|
[1] |
Bushing
|
|
| 14. |
U40166
|
[1] |
Pin Fastener
|
|
| 15. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| 16. |
U40164
|
[1] |
Pin
|
|
| 17A. |
U40644
|
[2] |
|
|
| 17A. |
U41036
|
[2] |
|
|
| 17B. |
U41558
|
[4] |
Clamp
|
|
| 18. |
19H2664
|
[8] |
Cap Screw
|
|
| 19. |
BP12232
|
[8] |
Lock Nut
|
|
| 20. |
U40138
|
[1] |
Channel
|
|
| 20. |
U40153
|
[1] |
Reinforcement
|
|
| 21. |
19H2676
|
[4] |
Cap Screw
|
|
| 22. |
T11234
|
[6] |
Lock Nut
|
|
| 23. |
U40534
|
[2] |
Bushing
|
|
| 24. |
JD7797
|
[3] |
Lubrication Fitting
|
|
| 25. |
........
|
[1] |
Clamp
|
|
| 26. |
U13055
|
[1] |
Clamp
|
|
| 27. |
U40447
|
[1] |
Clamp
|
|
| 28. |
19H2633
|
[1] |
Cap Screw
|
|
| 29. |
U11650
|
[AR] |
Washer
|
|
| 30. |
U11649
|
[AR] |
Washer
|
|
| 31. |
U40104
|
[1] |
Bushing
|
|
| 32. |
U40108
|
[1] |
Pin
|
|
| 33. |
T59452
|
[2] |
Snap Ring
|
|
