约翰迪尔零件查询93 - BACKHOE MAIN FRAME AND STABILIZERS FOR 94 BACKHOE [A14]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 707 次

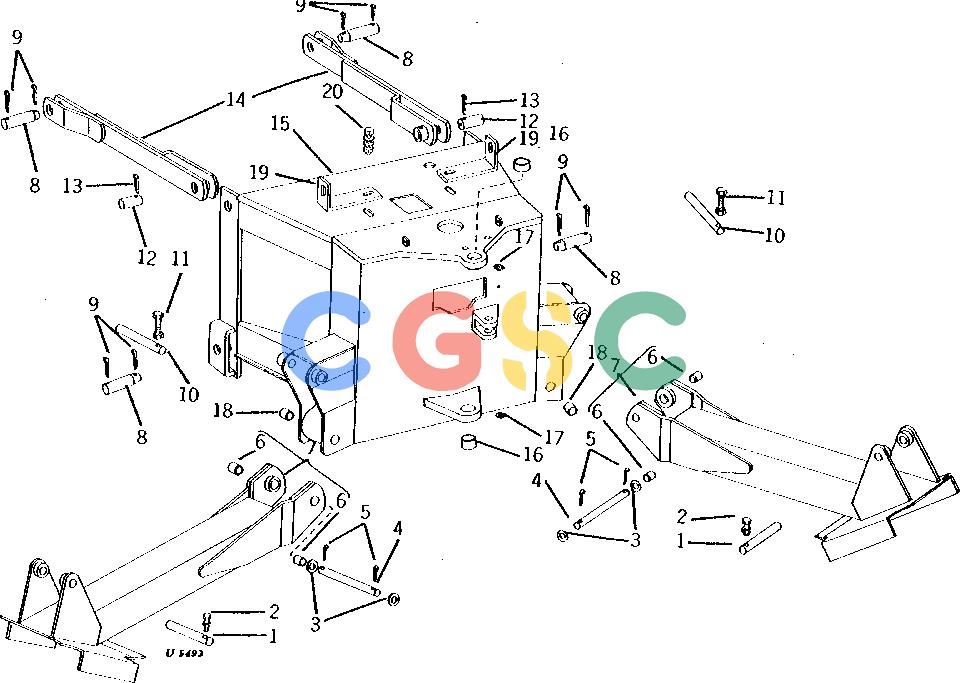

Pos.	Part No	Qty	Parts name	Comments
1.	U16057	[2]	Pin Fastener	ROD END
2.	19H1820	[2]	Cap Screw	HS, SAE 8, 1/2" X 3"
2.	BP12214	[2]	Lock Nut	(SUB FOR U12622) 1/2"
3.	24H1228	[4]	Washer	1-17/32" X 2-1/2" X 0.120"
4.	U16008	[2]	Pin Fastener
5.	11H221	[4]	Cotter Pin	3/8" X 2-1/2"
6.	T33536	[4]	Bushing
7.	........	[2]	Stabilizer	(INCLUDES BUSHINGS) ( AU13333 NO LONGER AVAILABLE)
8.	U41337	[4]	Pin	TIE BAR, (SUB FOR U41087)
9.	11M7073	[8]	Cotter Pin	8 X 63 MM
10.	U16050	[2]	Pin Fastener	ROD GUIDE END
11.	19H3057	[2]	Cap Screw	HS, SAE 8, 1/2" X 3/4"
11.	BP12214	[2]	Lock Nut	1/2", (SUB FOR U12622)
12.	U16915	[2]	Pin Fastener	TIE BAR
13.	11M7101	[2]	Cotter Pin	8 X 80 MM
14.	........	[2]	Tie Bar	( AU40714 NO LONGER AVAILABLE)
15.	AU40696	[1]		(SUB AU41213) (INCLUDES BUSHINGS)
15.	........	[1]	Main Frame	(INCLUDES BUSHINGS) ( AU41213 NO LONGER AVAILABLE)
16.	U41086	[2]	Bushing
17.	JD7759	[2]	Lubrication Fitting	STRAIGHT, 1/8"
18.	U10745	[4]	Bushing
19.	........	[2]	Clamp	( U16400 NO LONGER AVAILABLE)
20.	19H2676	[2]	Cap Screw	HS, SAE 8, 3/8" X 1"
20.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
20.	12H304	[2]	Lock Washer	3/8"
20.	14H812	[2]	Nut	3/8"
